Vista MB
Vista MicroATX tower PC ATX case - Aesthetic looks, airflow focus, easy installation, and ample room for large GPU and cable management. Good build quality computer case made of heavy-duty steel metal frame and 4.0mm tempered glass.

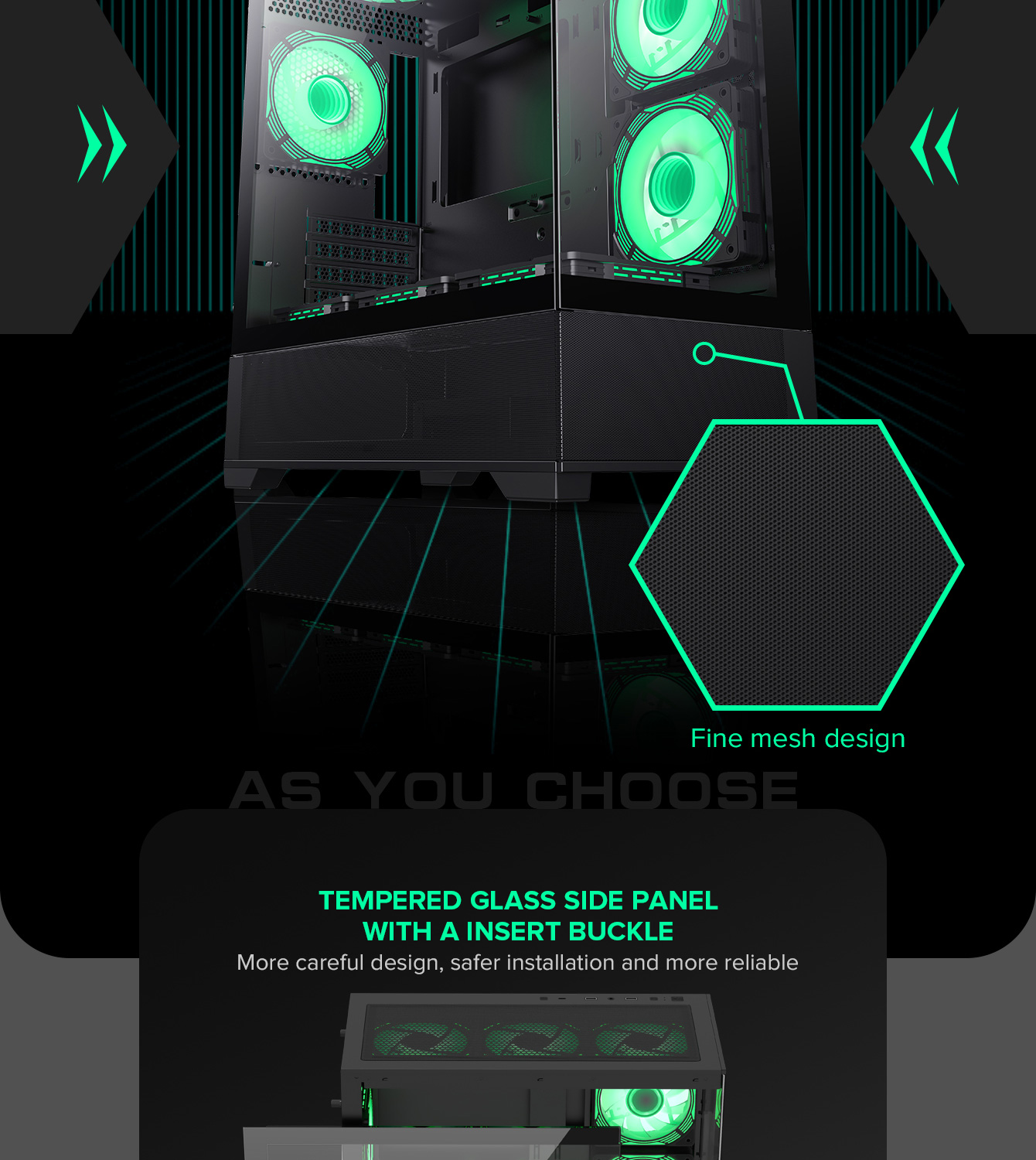

⚡Computer Case Focus on Cooling- The modular motherboard I/O allows you to move the motherboard to a higher/lower position for air-cooled/water-cooled systems. To ensure adequate airflow, a Total 9x120mm fan position, Fine mesh panel at the top, and on the PSU shroud side, help with great ventilation
⚡Easy Build Gaming PC Case- This case has a lot of flexibilities convenient for components installations: Removeable 5x Sides, Glass to Glass full view; Spacious PC case with Easy Cable Management, A seal plate on the top radiator bracket ensures no pressure leak when installing smaller than a 360 radiator/3x120mm fans at the top
⚡Latest Gen. Large Graphics Card Ready- This Mid-tower Case is compatible with the largest NVIDIA 4000 series cards thanks to its ample room for graphics cards up to 410mm in length, and 165mm in height (for air cooling mode)
- Chassis Type： MATX
- Led's Mode： Normal
| Vista MW | Form Factor | MICRO ATX |
| Chassis | SPCC :0.6mm | |
| PSU Form Factor | Bottom/ATX | |
| M/B Form Factor | M-ATX、ITX | |
| Front Panel | Tempered Glass,Mesh | |
| Top Panel | Metal cover | |
| Side Panel | Left | Tempered Glass,Mesh |
| Right | metal cover | |
| External Drive Bay(s) | 5.25" (ODD) | *0 |
| 3.5" | *0 | |
| Internal Drive Bay(s) | 3.5" (HDD) | *2 |
| 2.5" (SSD) | *2 | |
| 1*3.5HDD+2*2.5SSD or 2*3.5HDD+1*2.5SSD | ||
| I/O | Buttons | *3 |
| USB2.0 Port(s) | *2 | |
| USB3.0 Port(s) | *1 | |
| Audio Support | *1 (COMBO AUDIO) | |
| Card Reader (Support) | *0 | |
| RGB Controller | *1(Optional) | |
| Controller max. fans | *0 | |
| RGB Controller max. LED strips | *0 | |
| Remote (IR or RF) | *1(Optional) | |
| Cooling Fan Support | Front | *0 |
| Top | 3x120mm ,2x140mm (Fan optional) | |
| Rear | 1x120mm (Fan optional) | |
| M/B Cover | 2x120mm (Fan optional) | |
| PSU Cover | 3x120mm (Reverse fan blade)(Fan optional) | |
| Water Cooling Support (Radiator Size) | Front | *0 |
| Top | 120mm, 140mm,240mm,280mm,360mm | |
| Rear | 120mm | |
| M/B Cover | 120mm, 240mm | |
| Dust Cover | Bottom, right side panel and top cover with dust filter | |
| Slots | *5 | |
| Dimensions | Chassis | (L)415*(W)210*(H)435mm |
| Full Case (inc Fascia) | (L)433*(W)210*(H)450mm | |
| Carton | (L)517*(W)282*(H)496mm | |
| VGA Card Length | Up to 410mm | |
| CPU Cooler Height | 165mm | |
| SPS Length | up to 265mm | |
| Cable Management Depth | 25mm | |
GAMEMAX Vista(6675标准版) User Manual.pdf
