Nova N5
GameMax new Nova N5, ATX unique gaming chassis design, both quality, and performance, with a lastest top PSU cover, to speed up installation by assembling your system by open frame motherboard plate
NOVA N5 Gaming mid-tower with USB3.0 high-speed transfer, and see trough glass side panel, along with build-in ARGB strip and rear 1x12cm FRGB fan installed
The NOVA N5 with tool-less HDD cage which easy for the user for install HDD and hand screw for maintaining gaming system components quickly, Specifically, there is top covered PSU cage, which makes PSU hidden looking and all cables in backlit management, to get clean inside once PC assembled.
- Chassis Type： ATX
| Form Factor (Midi, Micro, Mini ITX, EATX) | Midi-Tower | |
| Chassis | SPCC 0.5mm, Black painting interior | |
| PSU Form Factor | TOP/ATX | |
| M/B Form Factor | ATX、M-ATX、ITX | |

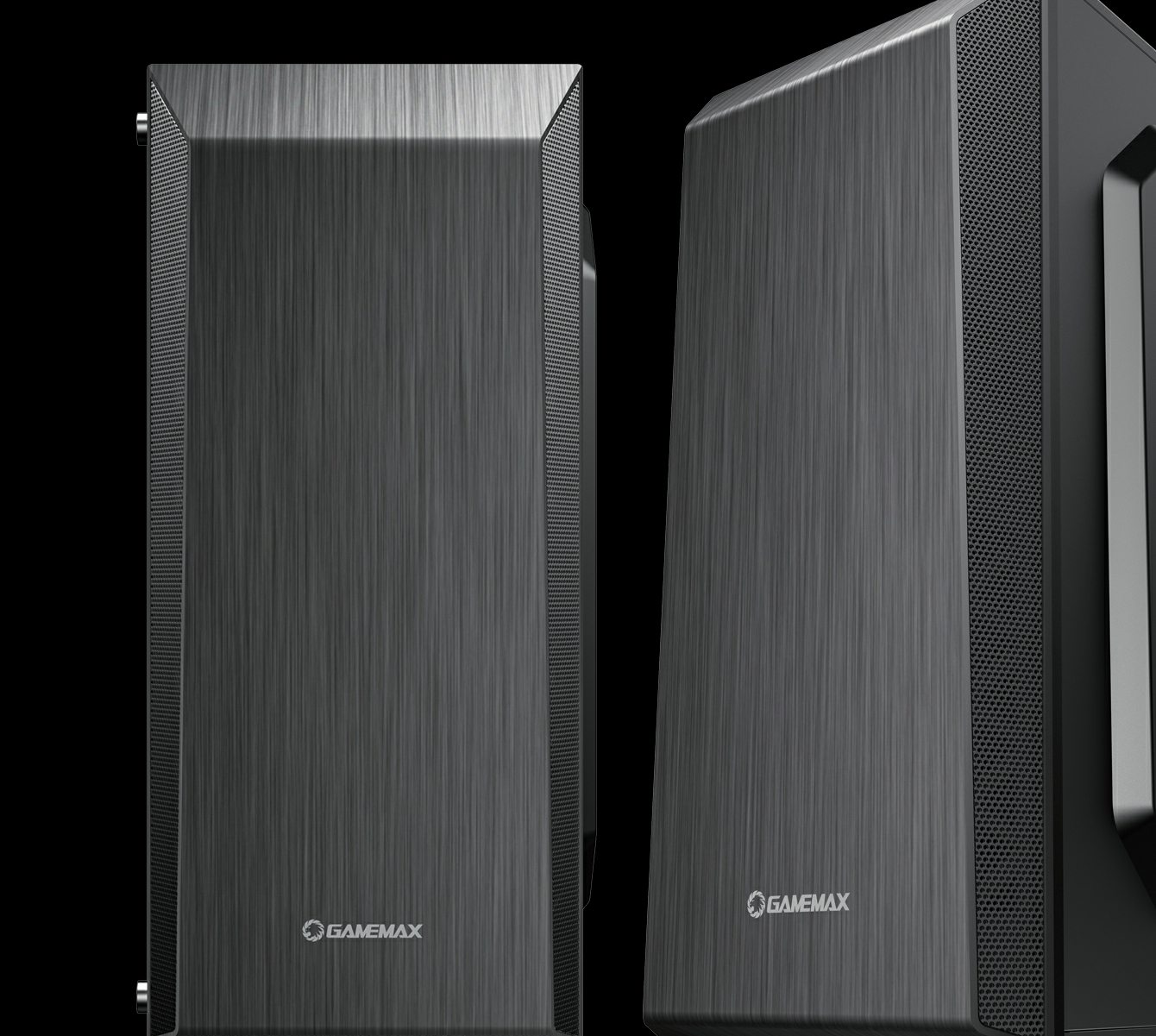

| Front Panel | ABS,Mesh | |
| Top Panel | Metal cover | |

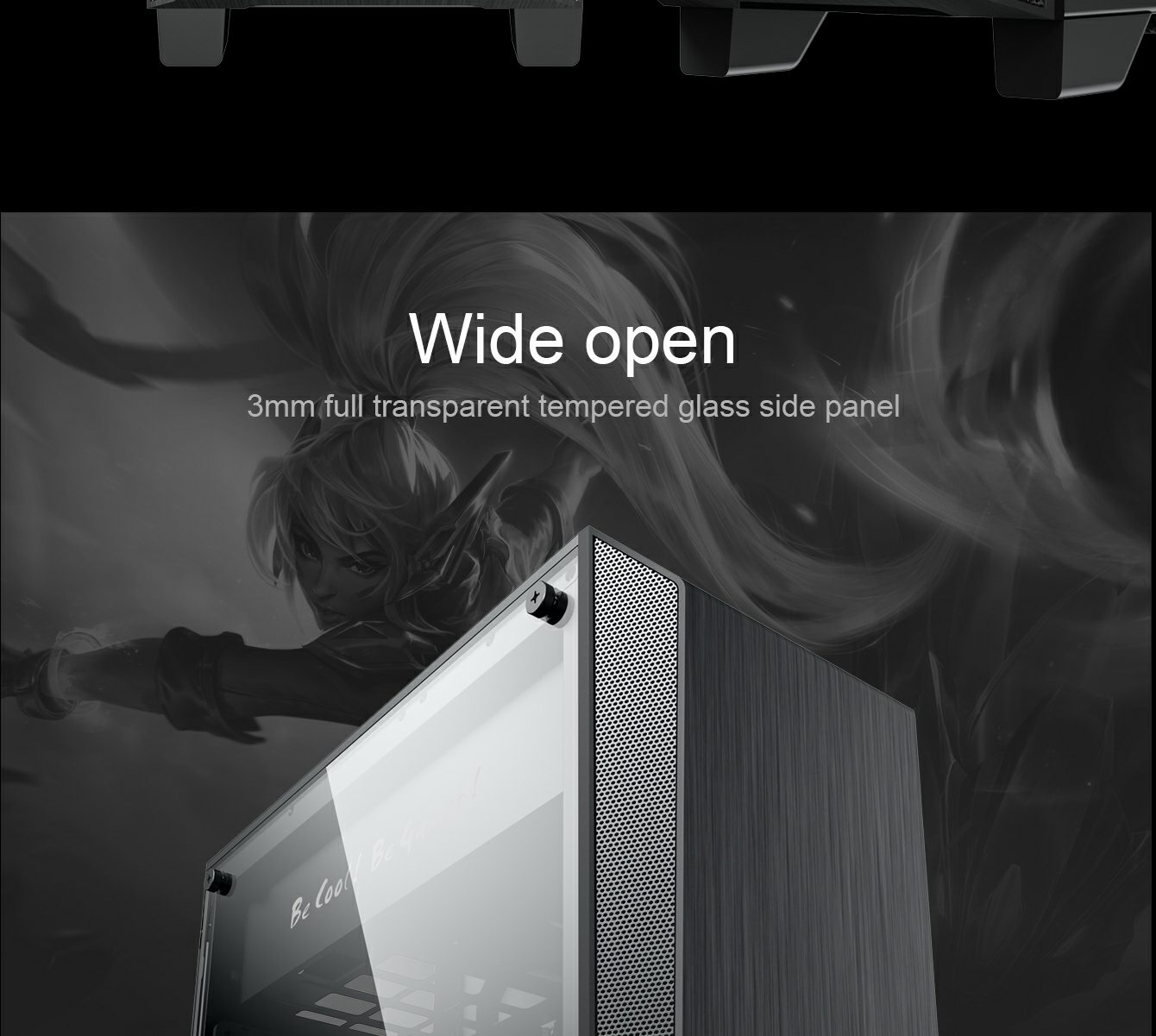

| Side Panel | Left | Tempered Glass |
| Right | Metal cover | |
| External Drive Bay(s) | 5.25" (ODD) | *0 |
| 3.5" | *0 | |

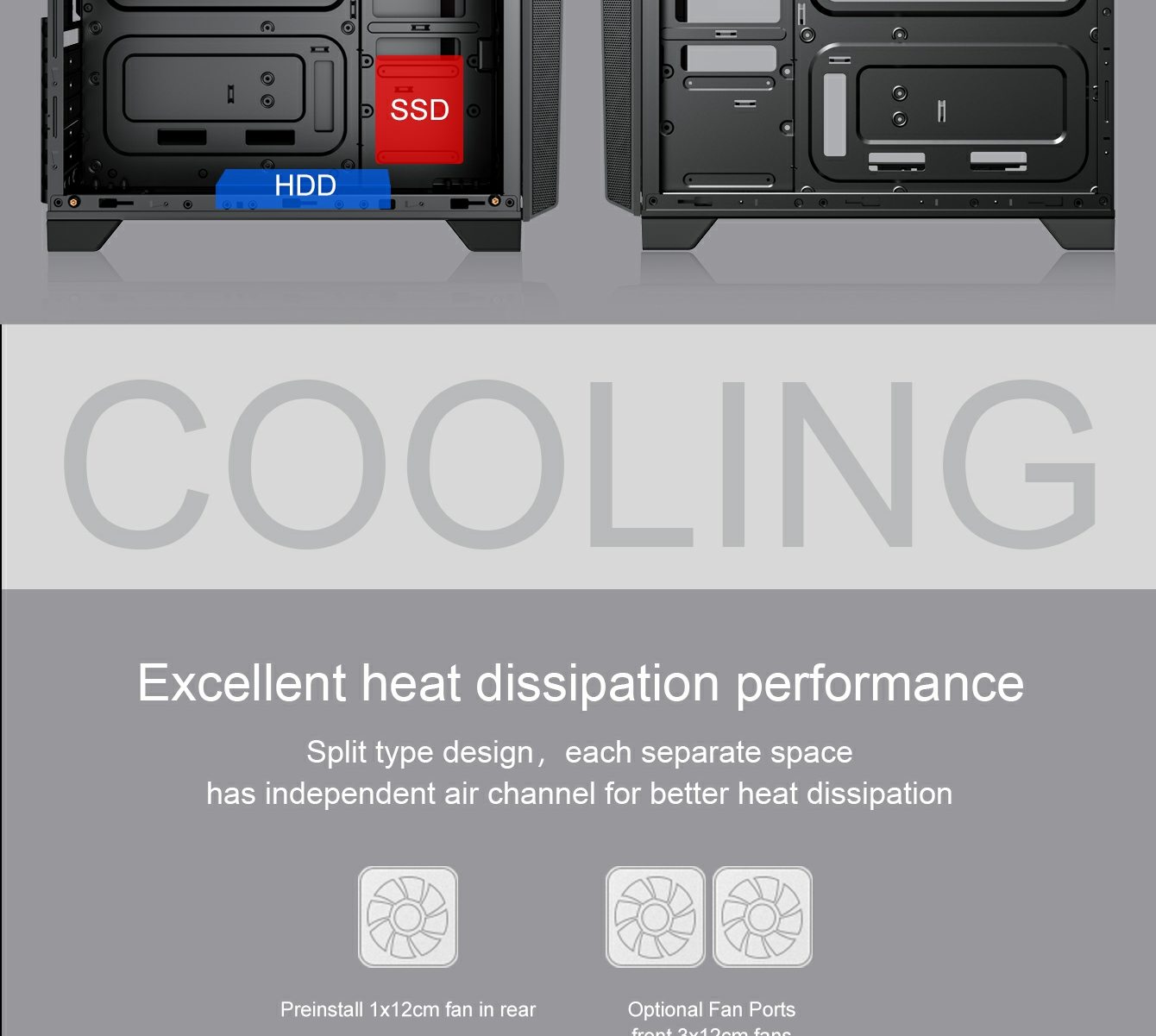

| Internal Drive Bay(s) | 3.5" (HDD) | *2 |
| 2.5" (SSD) | *2 | |

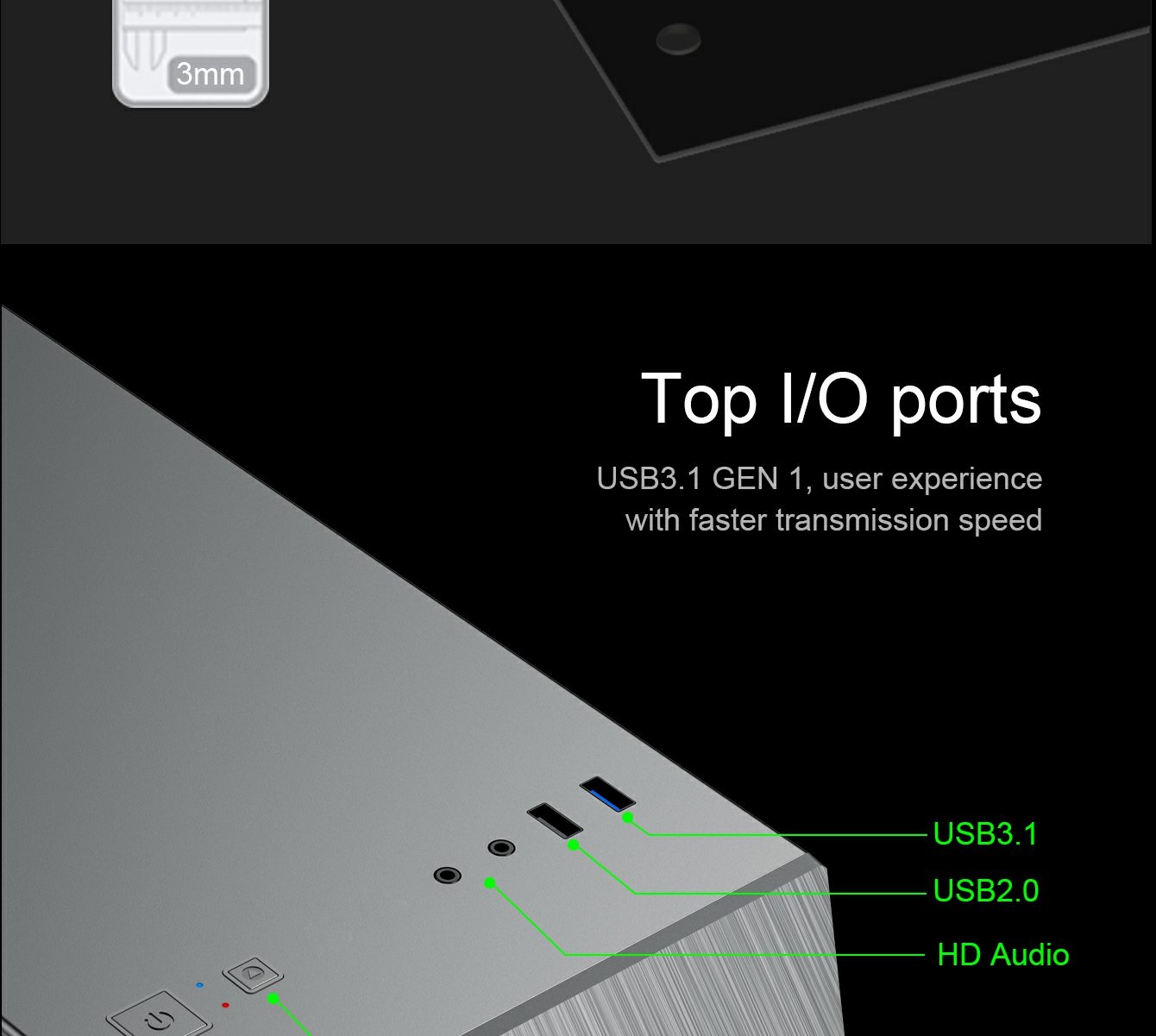

| I/O | Buttons | *3 |
| USB2.0 Port(s) | *1 | |
| USB3.0 Port(s) | *1 | |
| HD Audio Support | *1 | |
| Card Reader (Support) | *0 | |
| Fan Controller | *0 | |
| RGB Controller | *0 | |
| Controller max. fans | *5 | |
| Remote (IR or RF) | *0 | |
| Cooling Fan Support | Front | 2x120mm (Fan optional) |
| Top | 0 | |

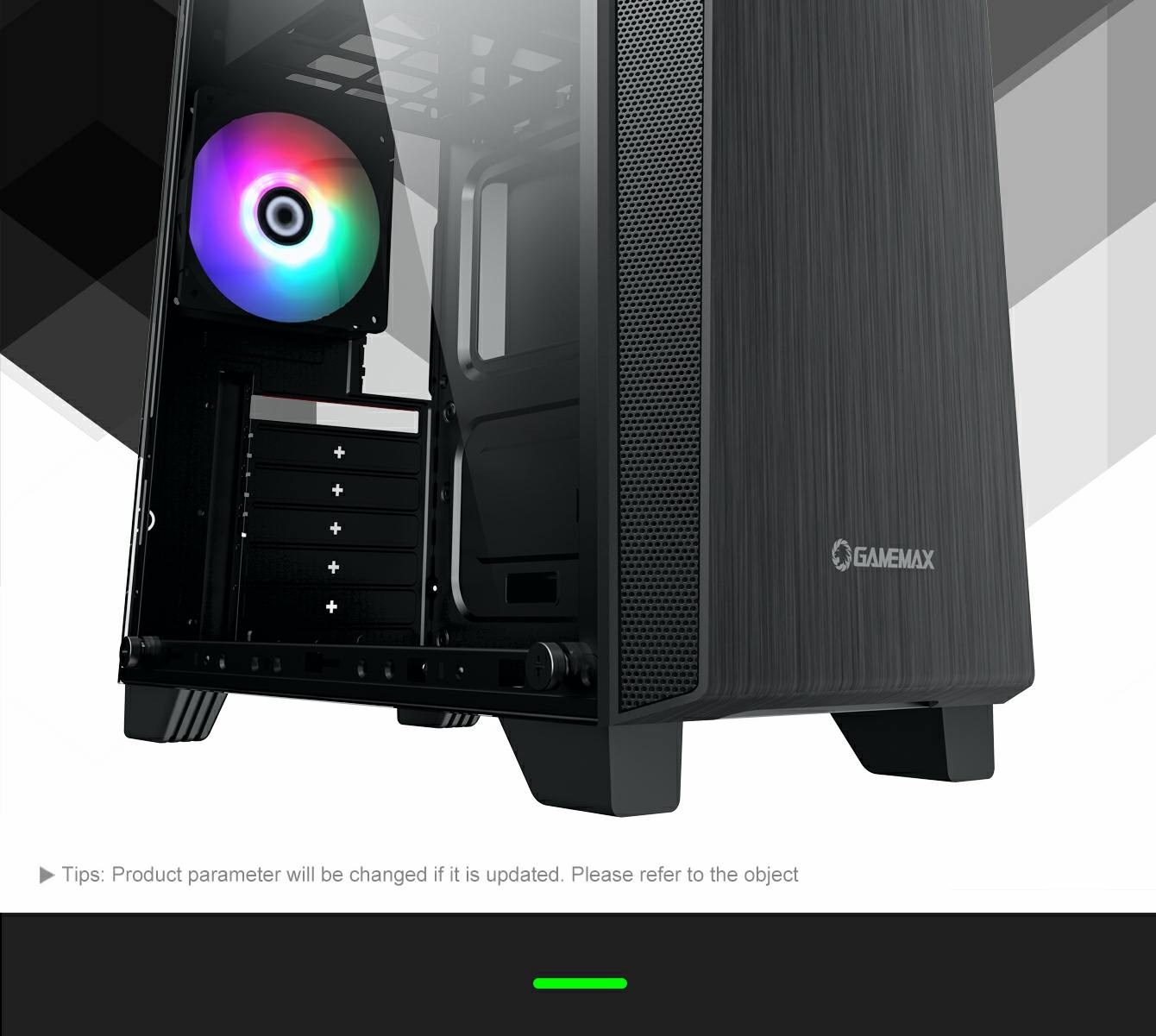

| Rear | 1x120mm FRGB Fan Incl. | |
| Left Side | 0 | |
| PSU Cover | 0 | |

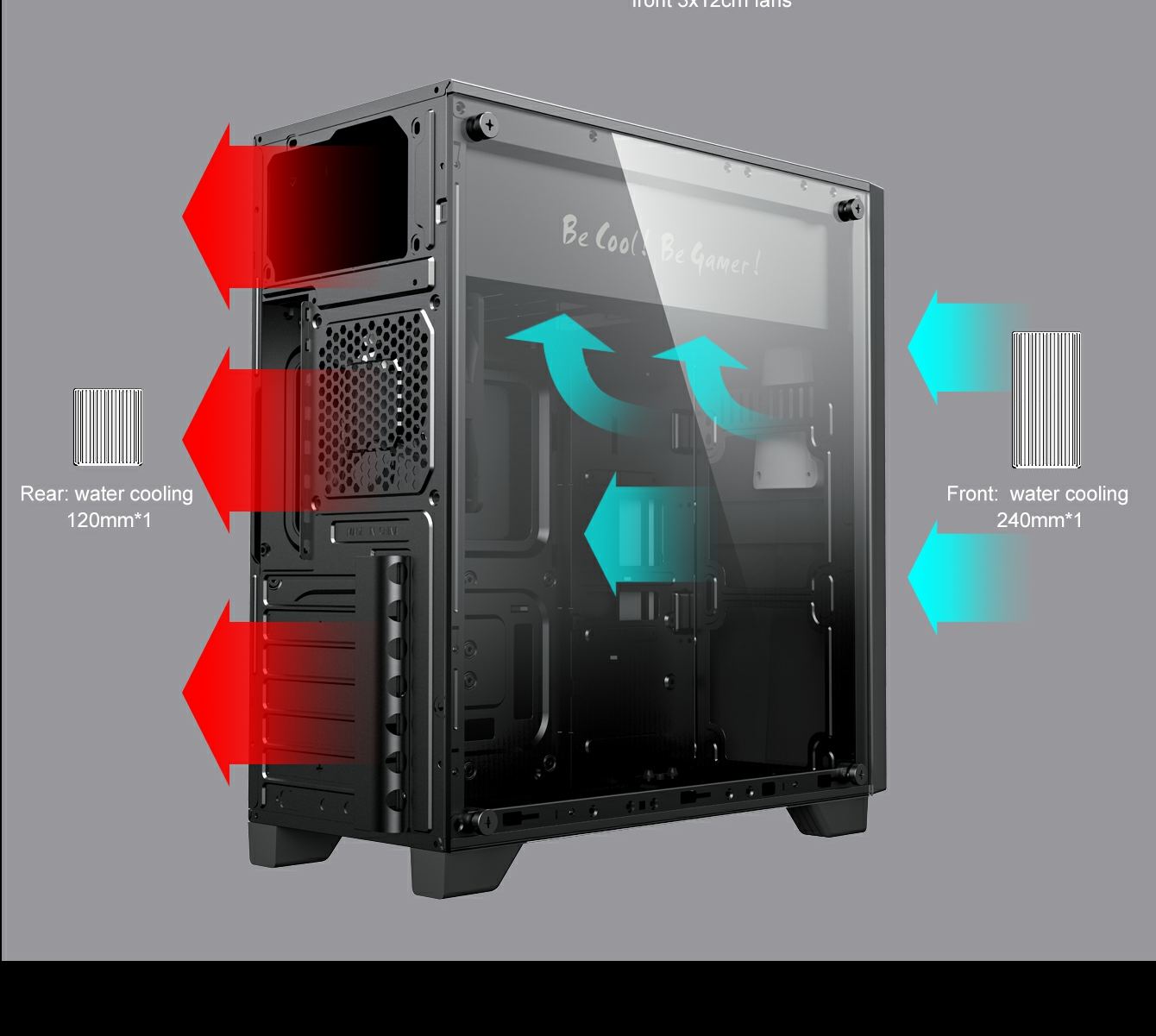

| Water Cooling Support | Front | Water cooling 240mm*1 |
| Top | / | |
| Rear | Water cooling 120mm*1 | |
| Slots | *7 | |
| Carton & Logo | GAMEMAX | |

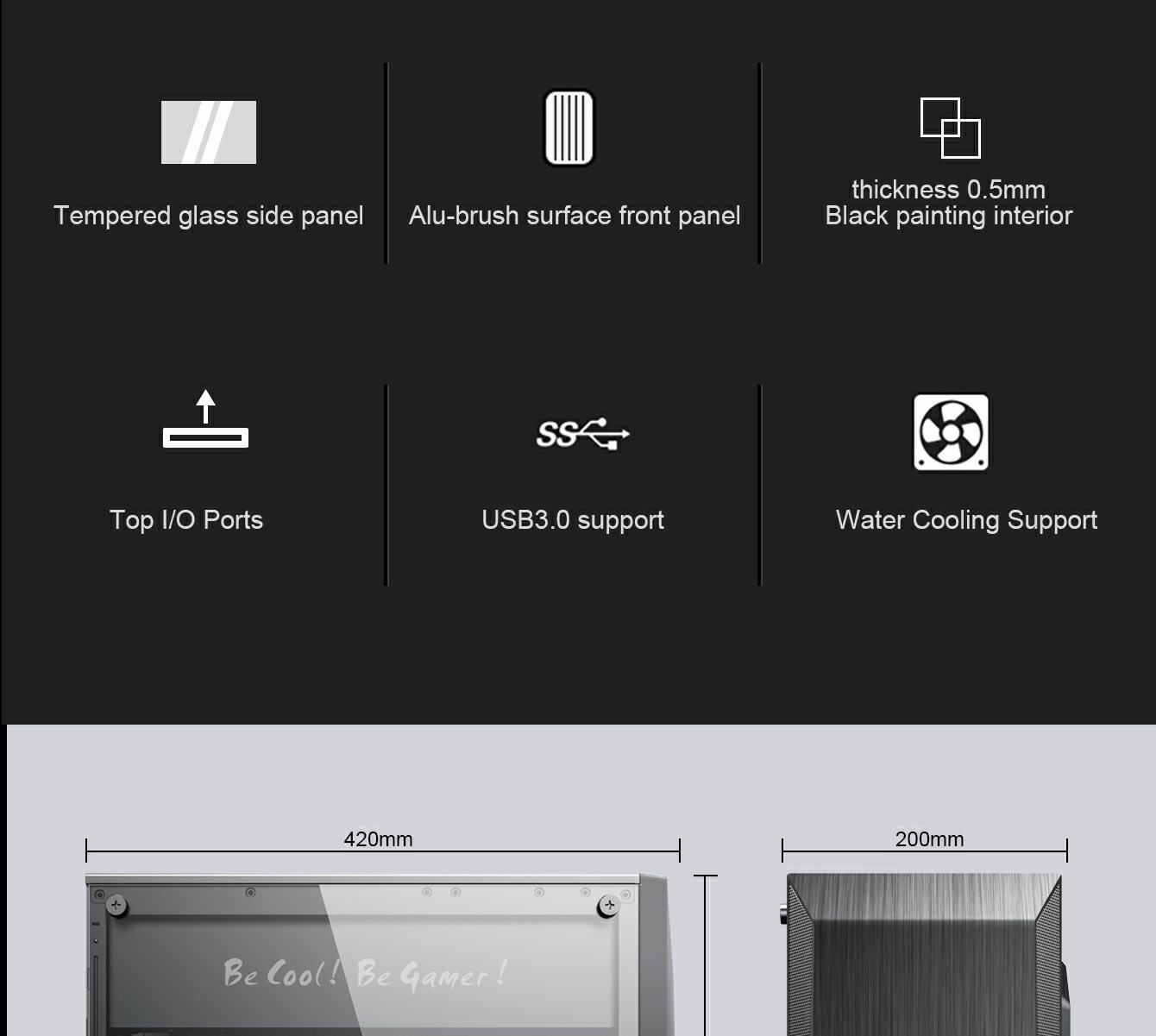

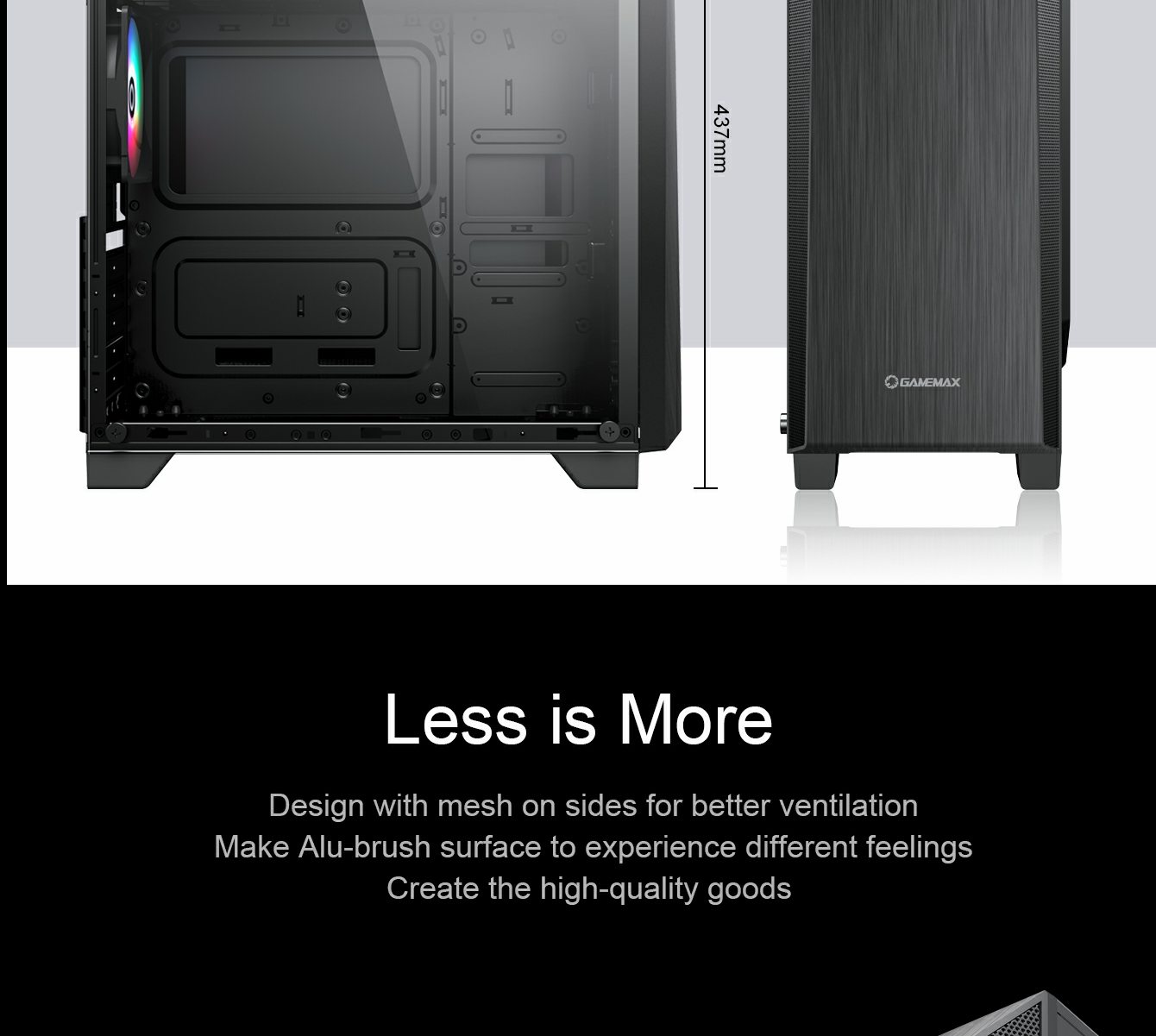

| Dimensions | Chassis | (L)370*(W)184*(H)412mm |
| Full Case (inc Fascia) | (L)430*(W)200*(H)437mm | |
| Carton | (L)479*(W)238*(H)468mm | |
| Net Weight (Kg) | 4.0kgs | |
| Gross Weight (Kg) | 4.8kgs | |

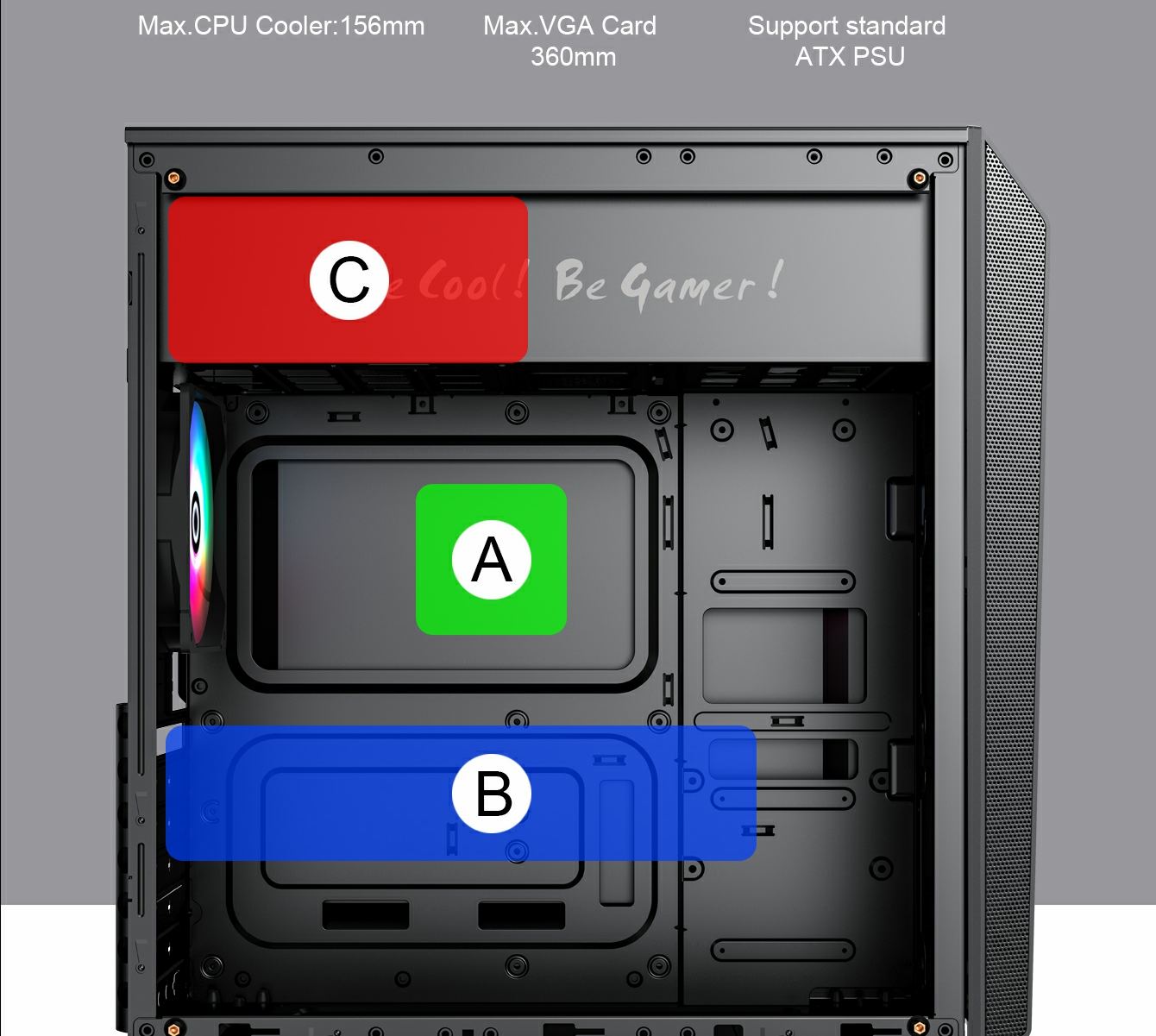

| VGA Card Length | 360mm | |
| CPU Cooler Height | 156mm | |
| Cable Management Depth | 23mm |
