RGB850 PRO

GameMax RGB-850 PRO 全模块化 80+ 金牌认证,强大的单路 +12V 输出设计有助于确保稳定,并可靠地为其他 PC 组件供电。配备 140 毫米 ARGB 风扇有助于提供更明亮和令人惊叹的灯光效果,支持与华硕、技嘉、微星和华擎兼容的 RGB 主板同步,提供无数照明可能性。

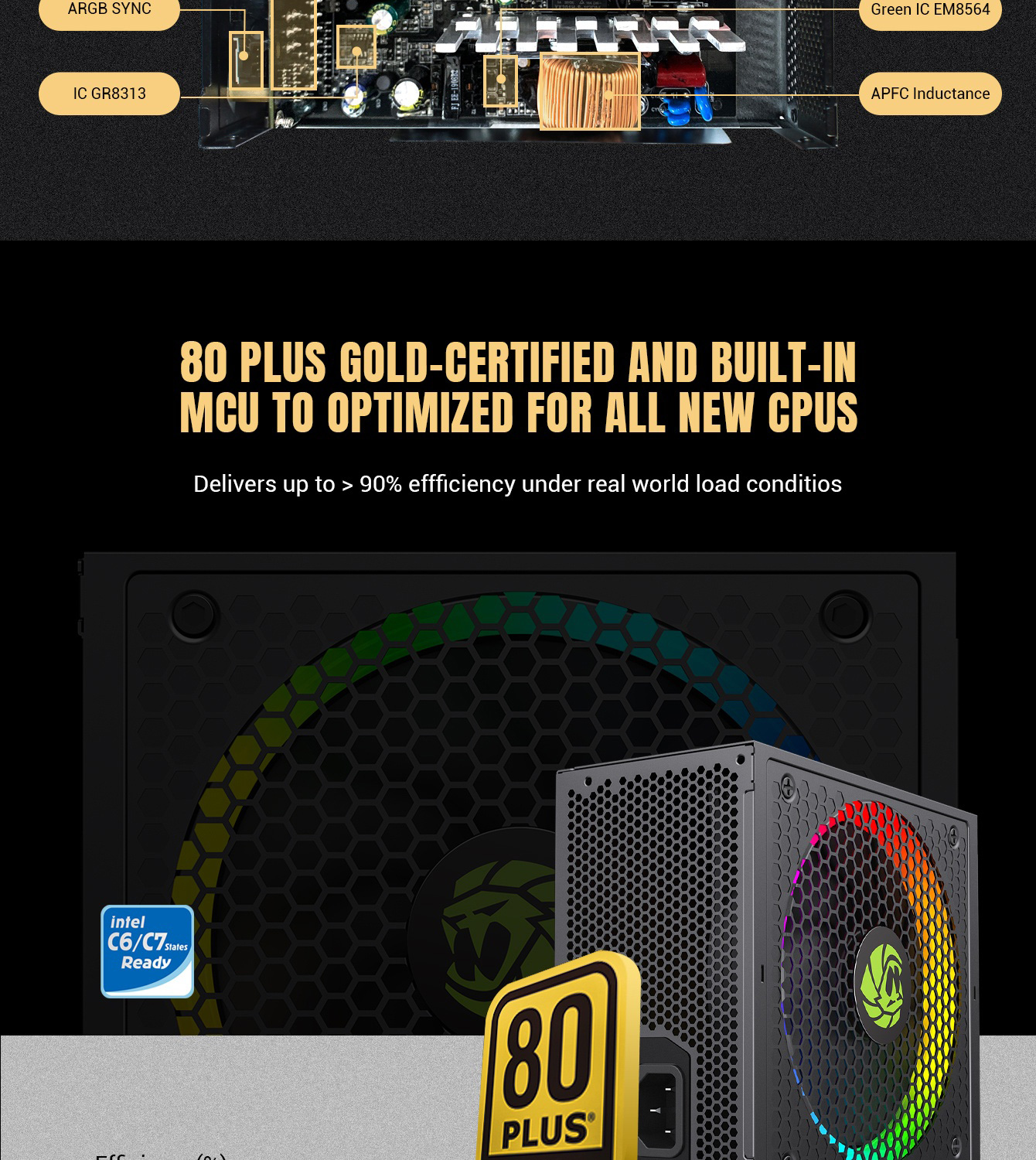

⚡80 Plus 金牌认证:RGB-1050 PRO 在典型负载下具有 90% 或更高的效率。更低的功耗、更低的噪音和更低的温度。
⚡RGB灯模式:25种带记忆功能的智能RGB灯模式,按下RGB控制器开关选择你喜欢的颜色模式单色模式、呼吸灯模式、混色模式。

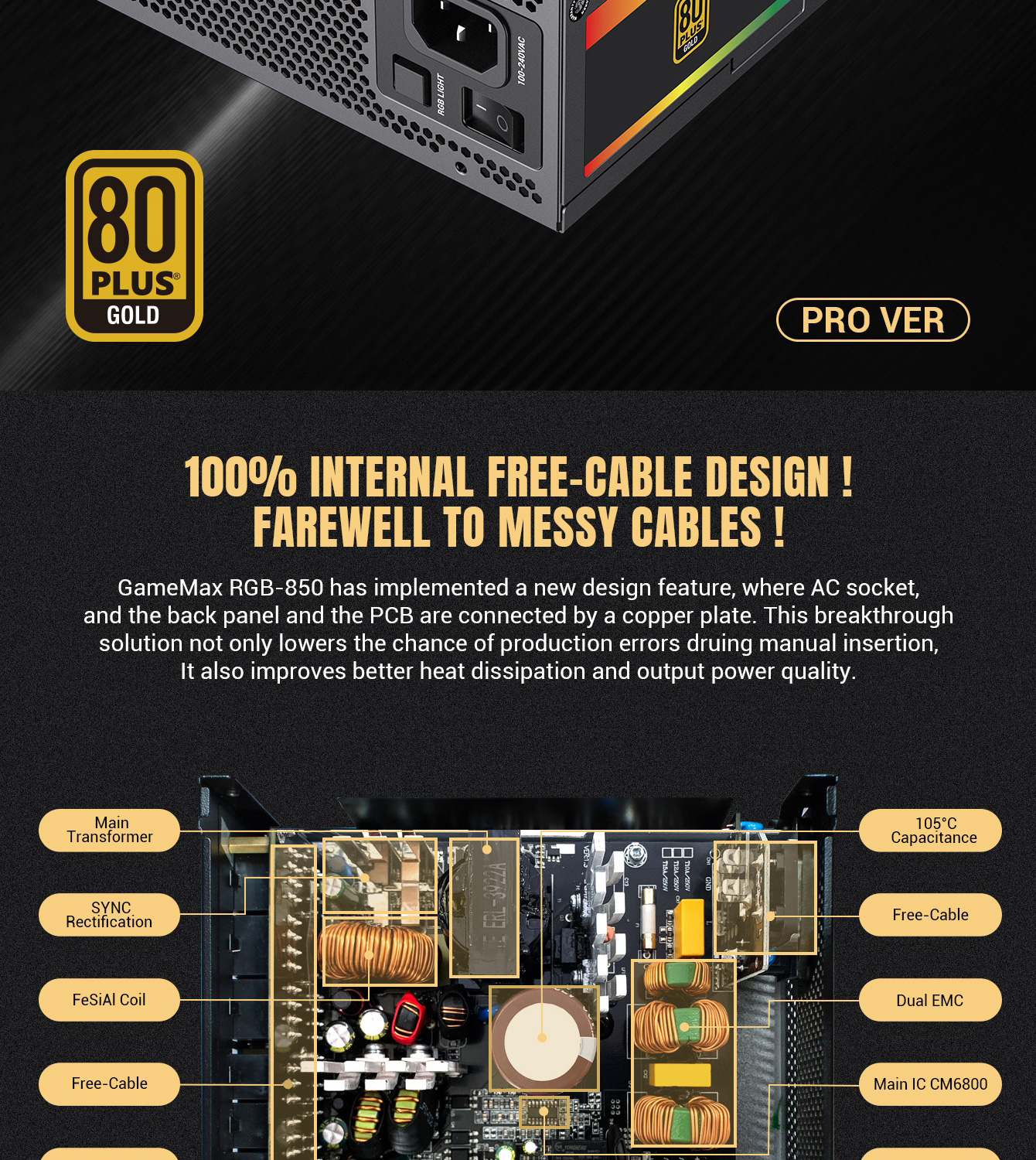

⚡全模块化:免费线缆设计,告别凌乱的线缆!子板直接焊接到主板上,散热更好,输出功率质量令人印象深刻。
⚡超静音风扇:140mm 超静音风扇让您的电源安静,同时保持良好的散热。

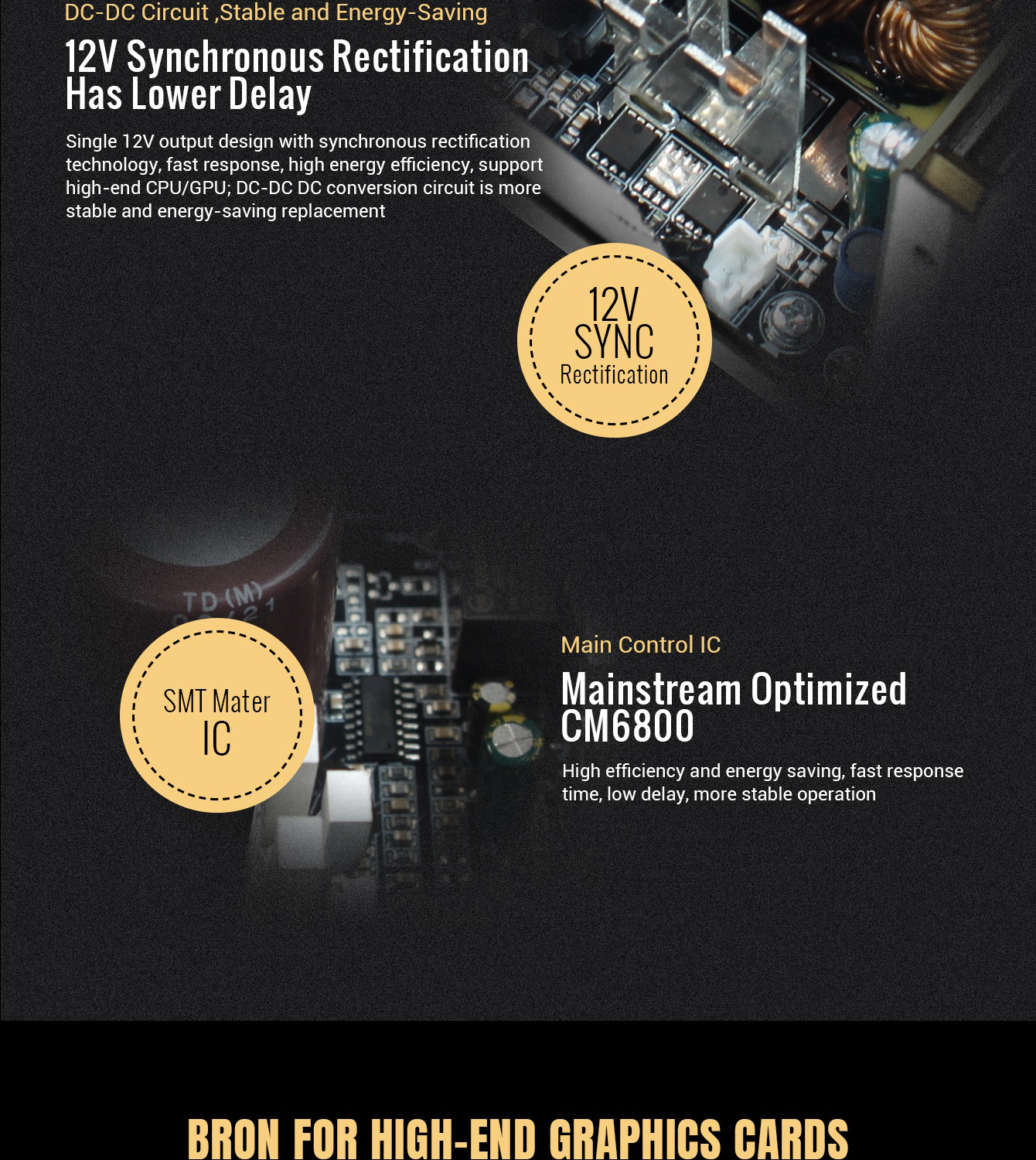

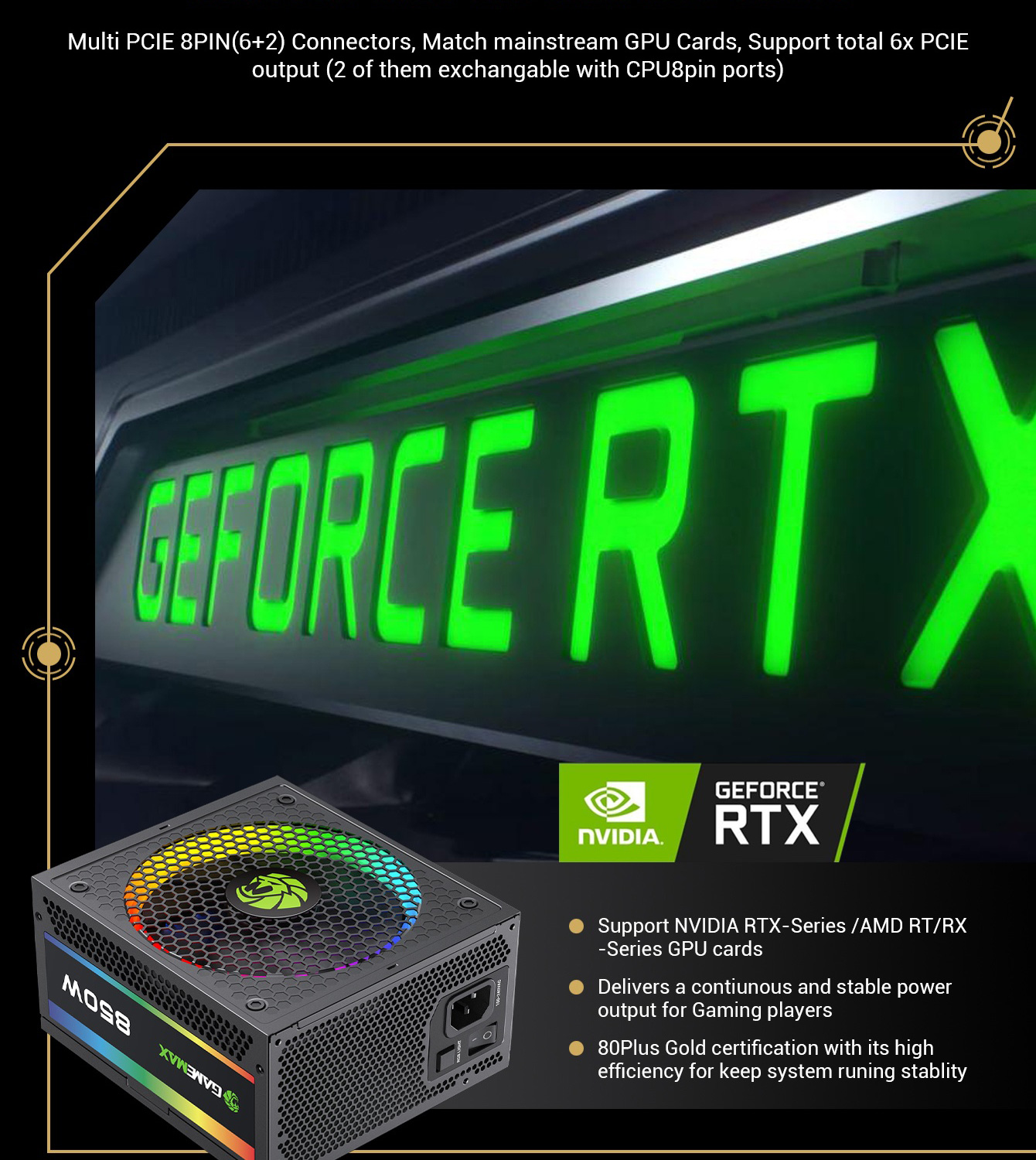

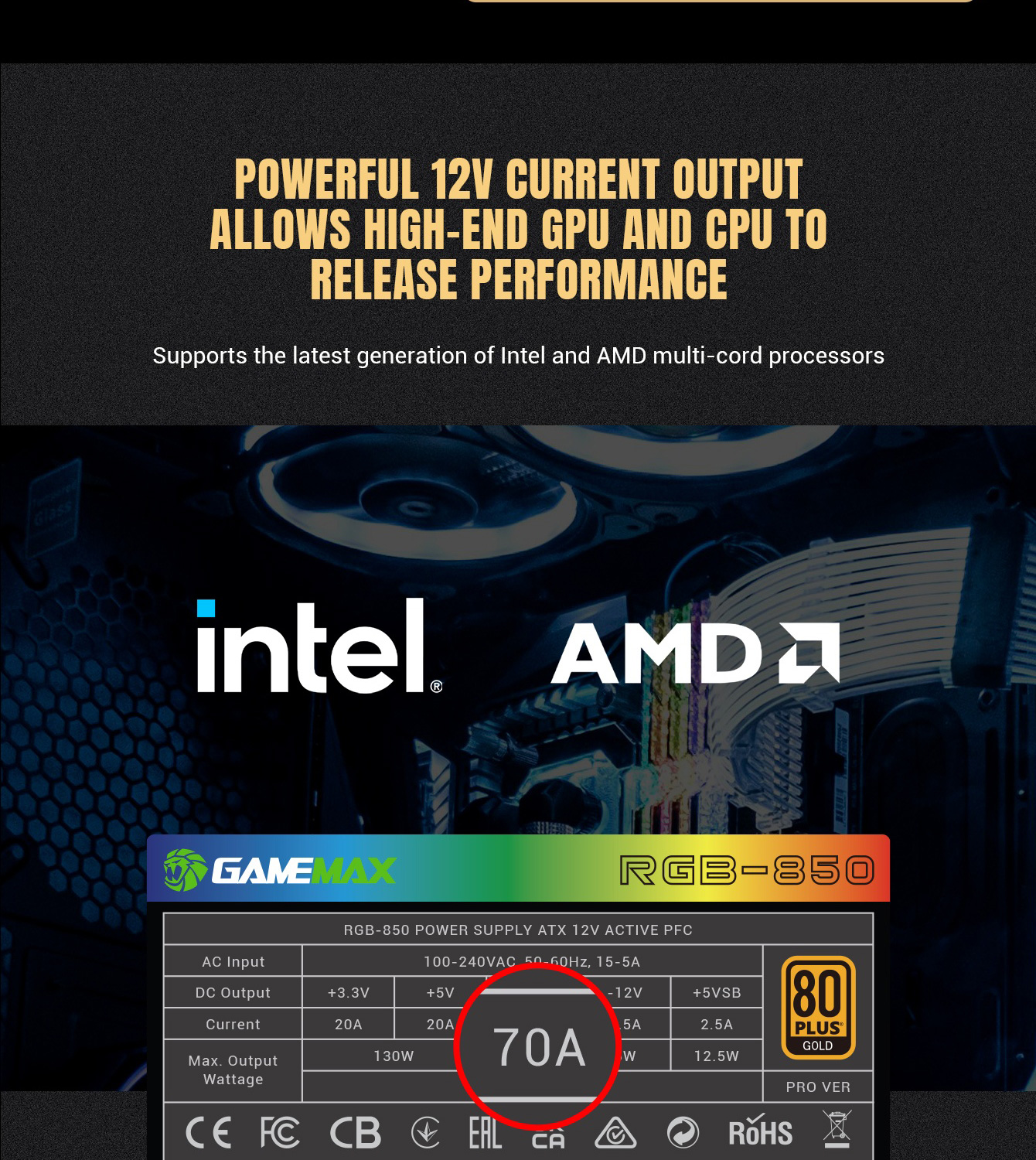

⚡输出与保护:强大的+12V单轨提供稳定的直流输出,支持高端显卡和PC系统。优秀的电容器提供稳定性、耐用性和可靠性,包括 OPP/OVP/UVP/SCP/OCP 电气保护。

  • 产品类型: RGB
  • 线材输出: 全模组
  • 效率等级: 80+金牌
  • 外观颜色: 黑色

Product Technical Specifications

80PLUS®CetificateGOLD
Form FactorPower SupplyIntel ATX 12 V
Dimensions
170 mm (L) x 150 mm (W) x 86 mm (H)

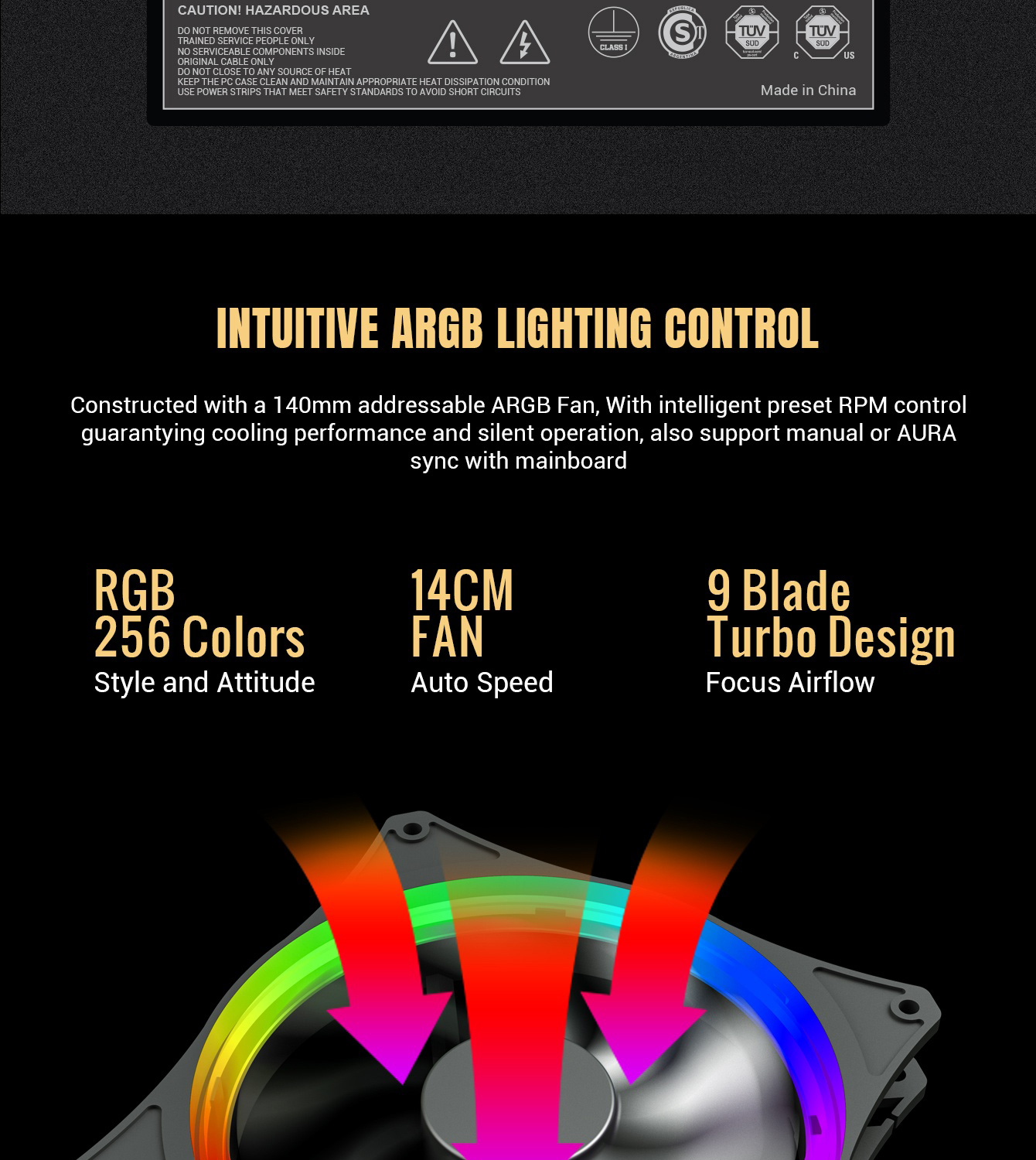

Fan InformationFan Size140mm with ARGB LEDs
Fan ControlTemperature control
Fan BearingFluid Dynamic Bearing
Life Expectancy50,000 hours

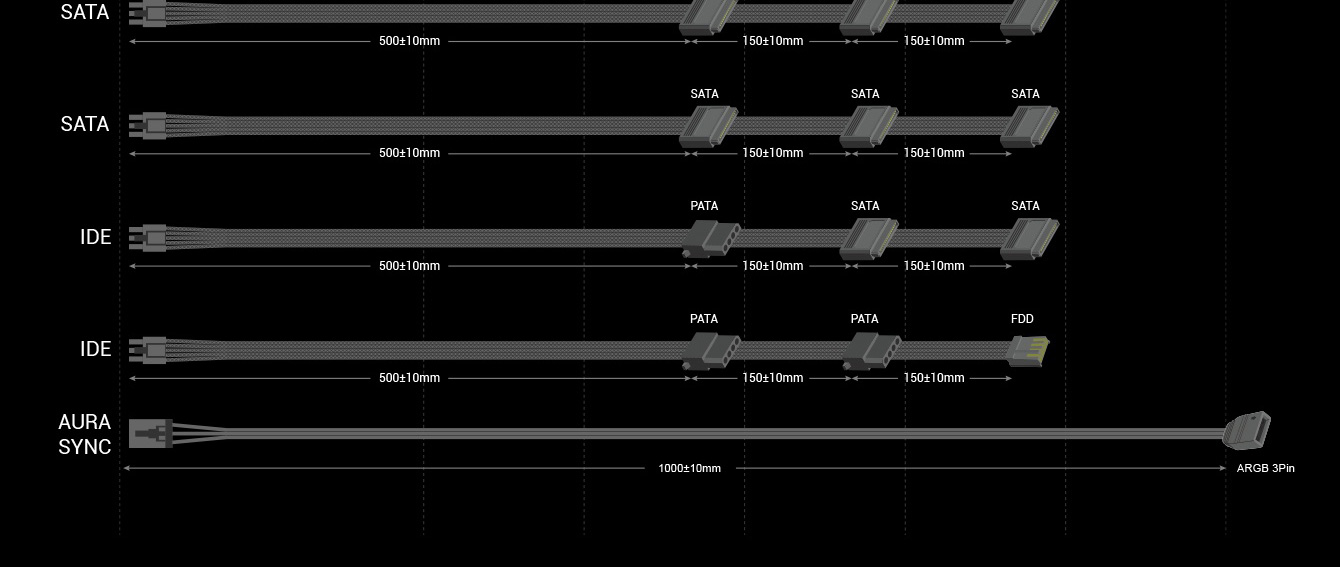

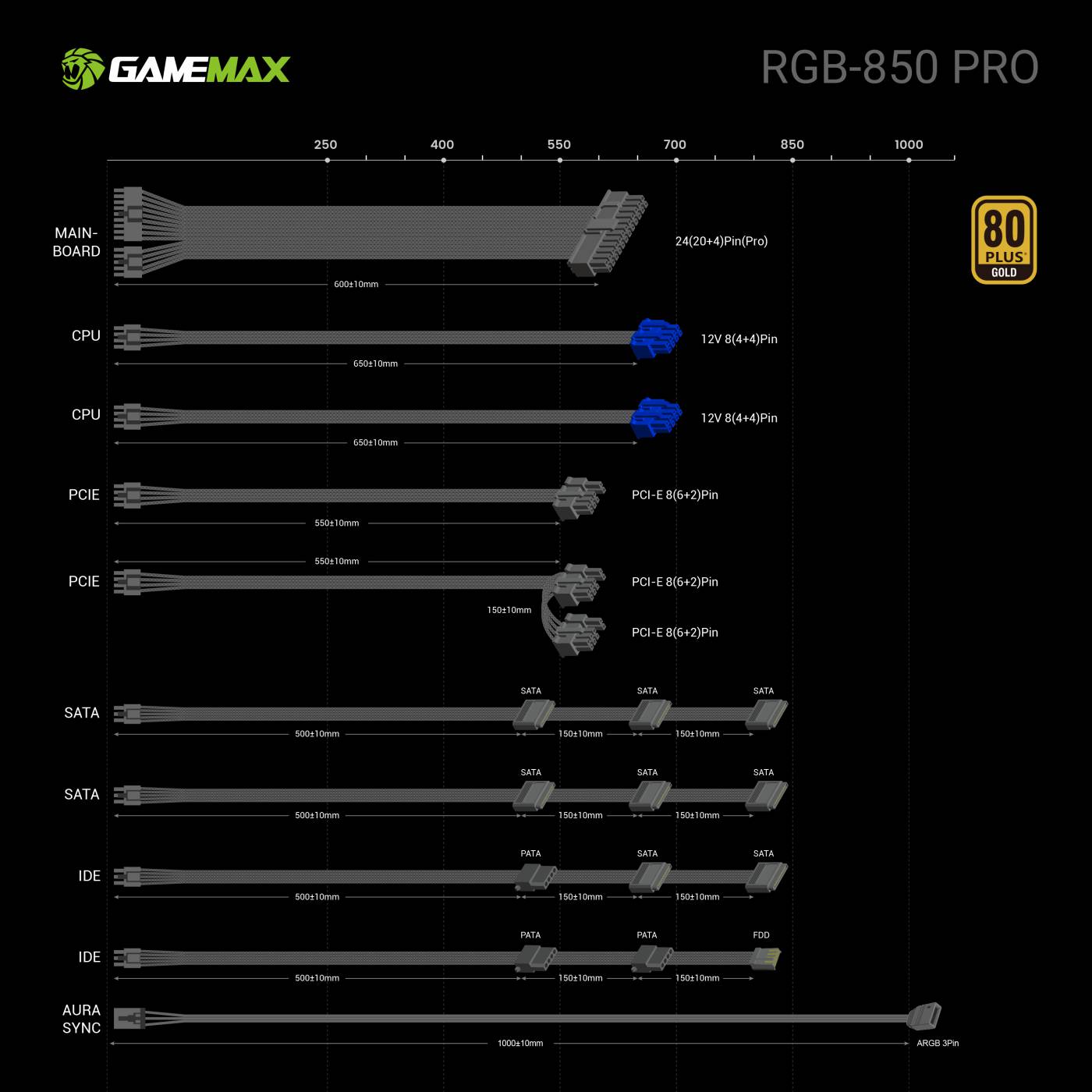

Cable InformationModularityFully Modular
Cable typeFlat black cables
Electrical FeaturesOperating Temperature0-50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
MTBF100,000 Hours (@ 25 °C, Excl. fan)

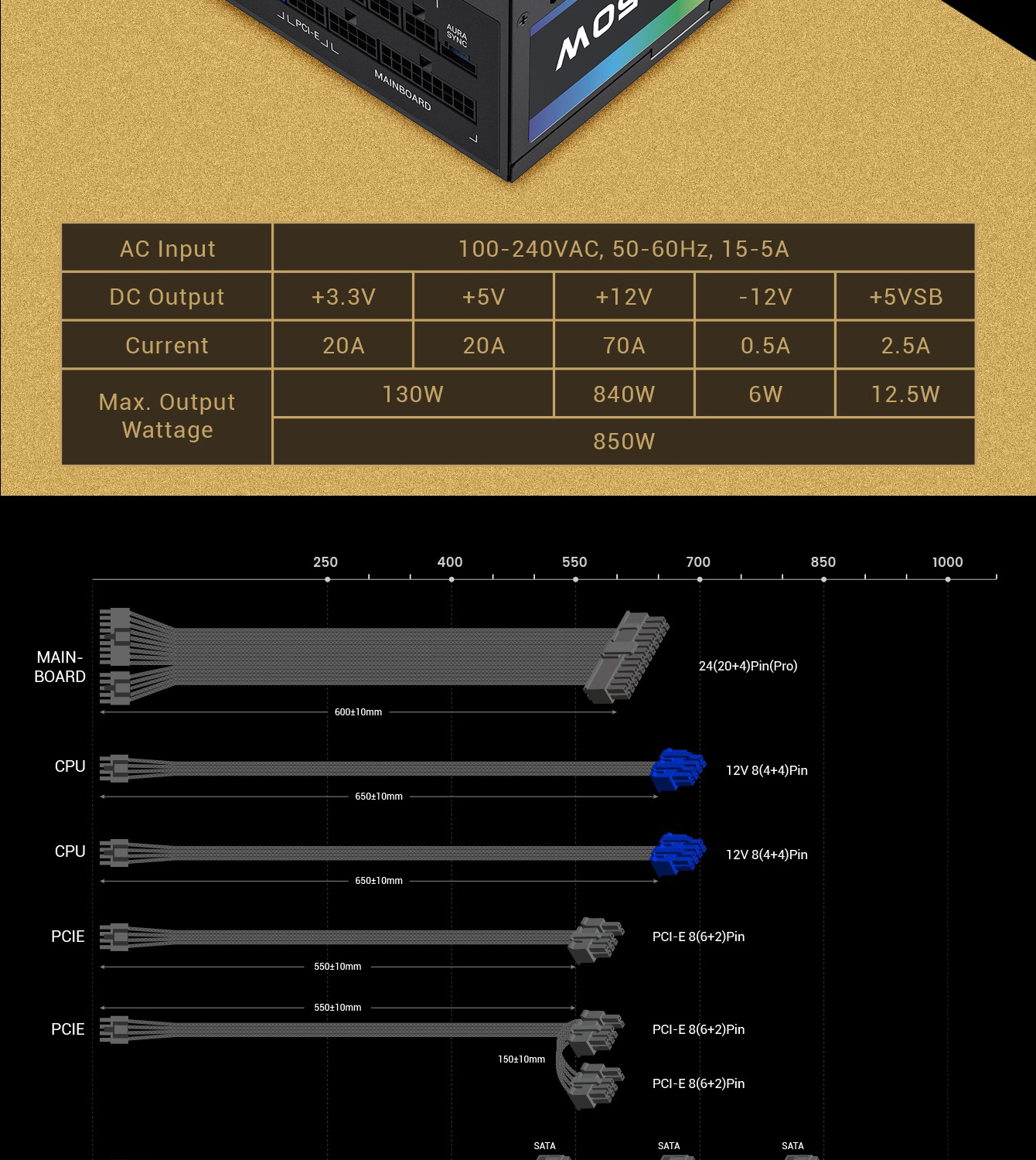

AC InputFull Range

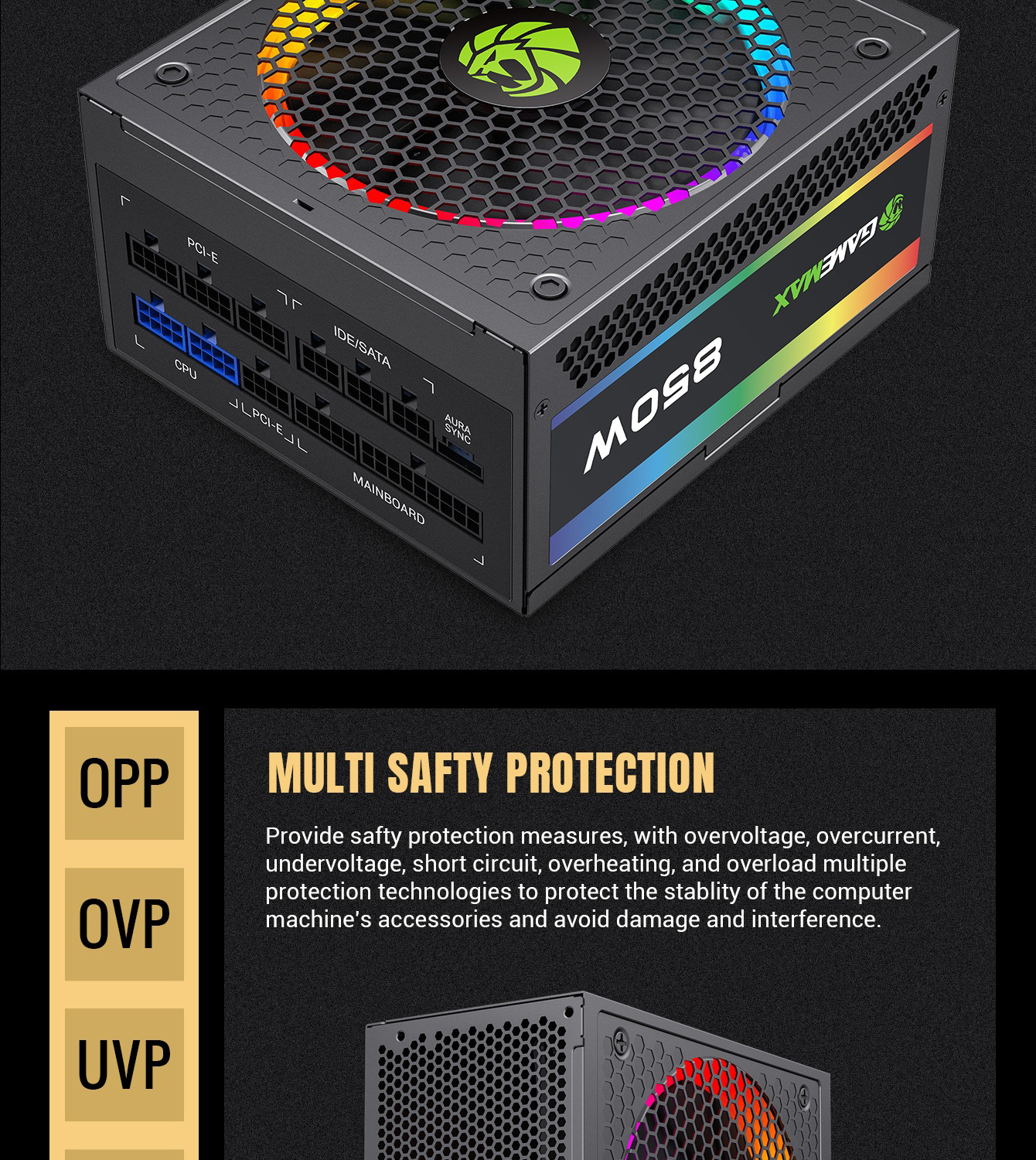

ProtectionOPP, OVP, UVP, OCP, OTP, SCP
Safety CeritificateSafety and EMCcTUVus, TUV, CB, CCC, EAC, CE
EnvironmentalComplianceRoHS

RGB Modes Operation Instructions:

Key FunctionRGB LED Status
Turn On, Entry last ModeKeep the Save memory mode

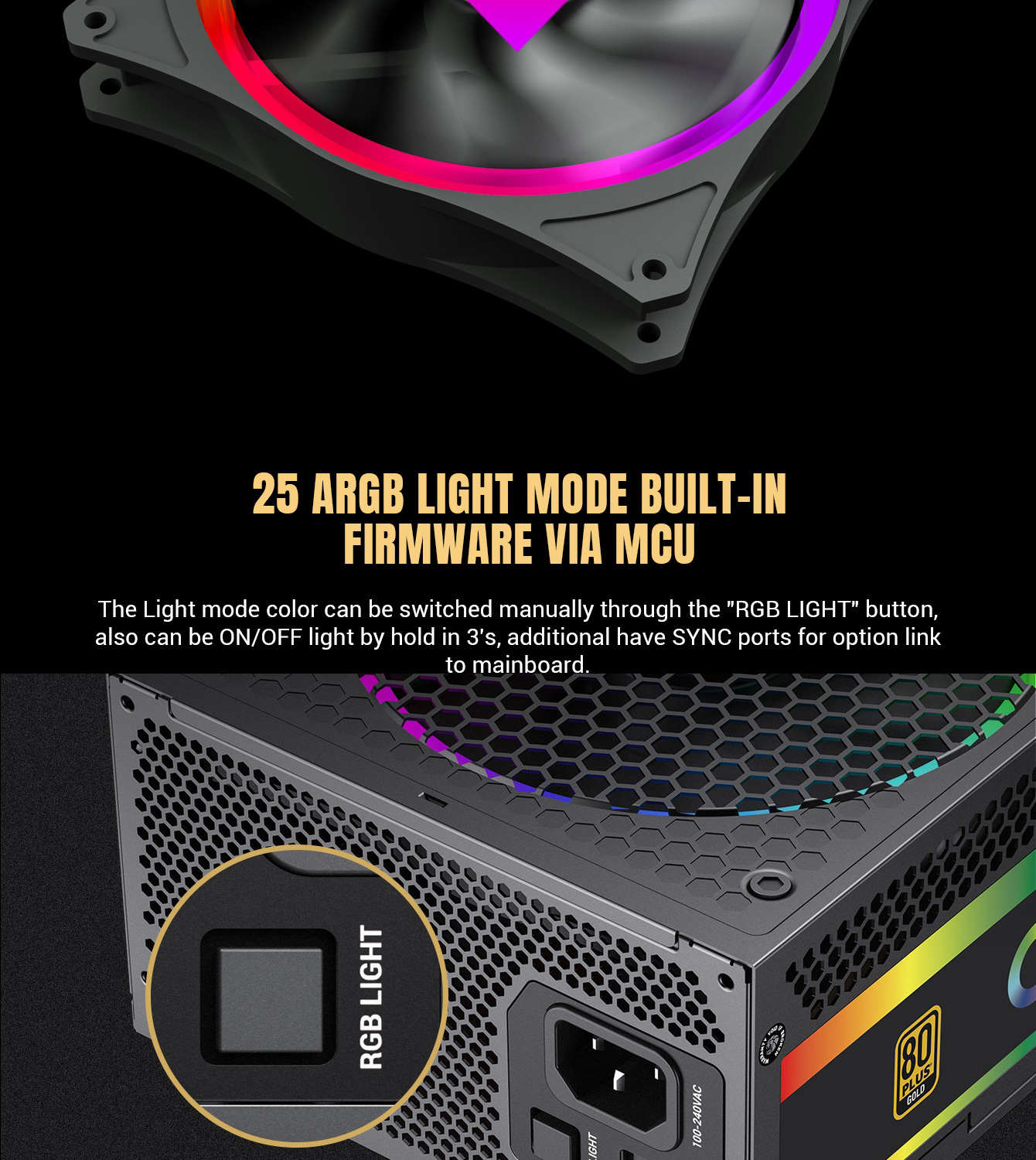

Press RGB SwitchSelect RGB light mode
Press and Hold in 3secOFF the RGB LED light
Press the Switch againWhite light flashes once and Entry in o the last mode
Press Longer Don't releaseEntry Self-Test mode(All led White Light
Release after Press longerExit Self-Test mode, Entry Last memory mode

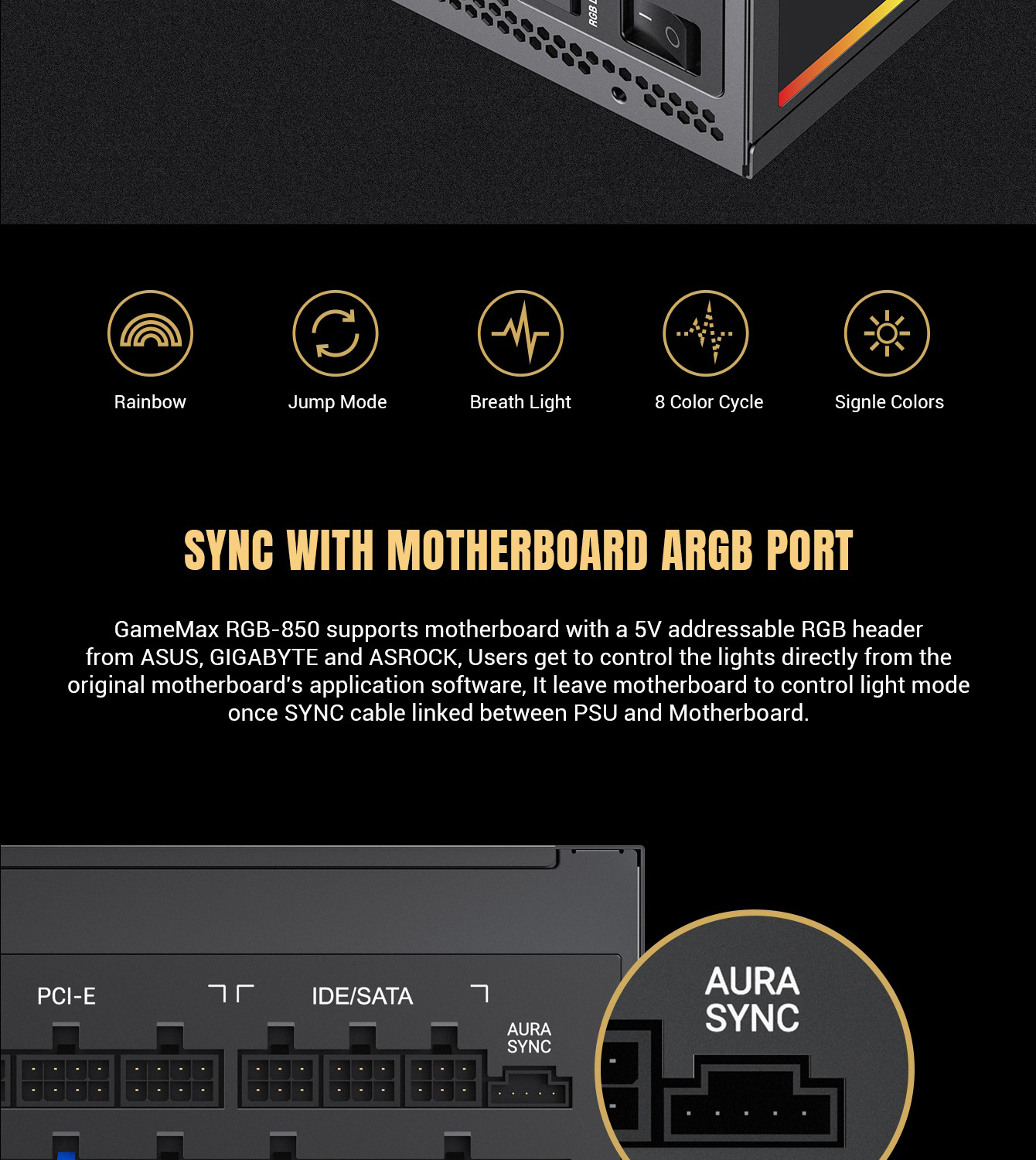

Aura SYNC
Access external ARGB HUB or 5V 3pin signal from motherboard
