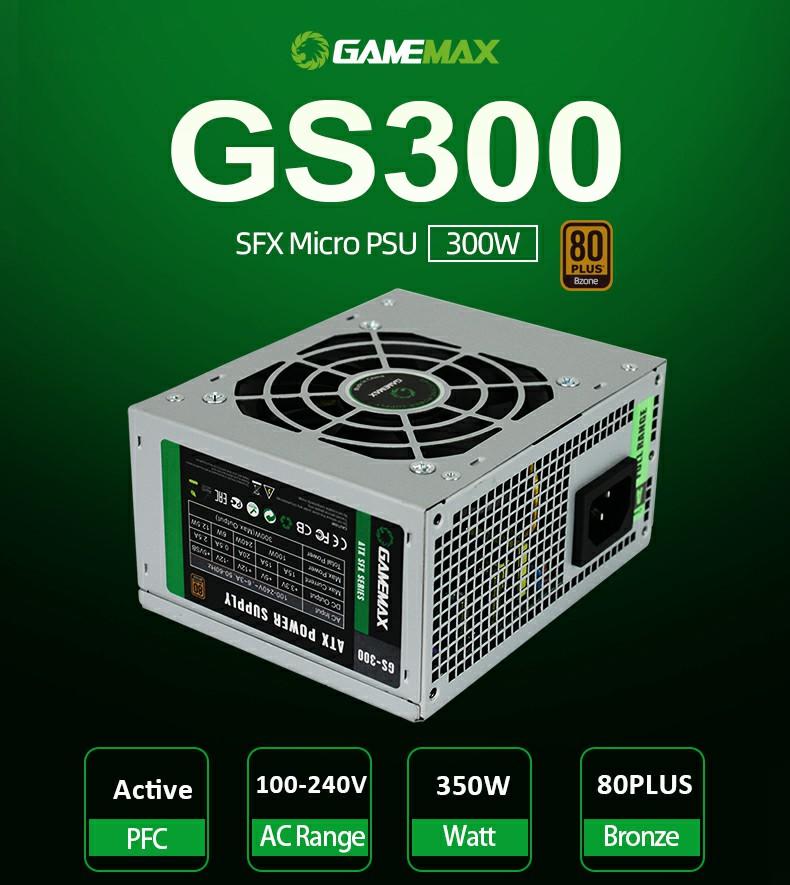

GS-300 80+

GameMax Micro SFX Design are known mostly as a replacement power supply, but it has now evolved and can be used for Mini-ATX cases, custom built computers, mini-servers, and much more. With the increase of wattage and efficiency, the micro SFX is a conventional PSU that can be used for multiple purposes. The Active PFC and Full Range function promotes a smarter PSU. Able to detect the differences of wattage that is needed to power up your system, you can be rest assured as it will provide and maintain the most suitable power needed. Thermal fan speed control it will detect the amount of heat generated by the computer. Using this controller to detect the heat levels, it will automatically adjust the fan speed accordingly and the need to worry about the heat levels of a PSU, becomes almost non-existent.

  • PSU Type: SFX
  • Cabling: Wired
  • Efficiency: 85+ Bronze

PSU Specifications

AC INPUT: 100-240 VAC 3-6A 50-60Hz
DC+3.3V+5V+12V1-12V+5VSB
Output15A15A20A0.5A2.5A
Max300W

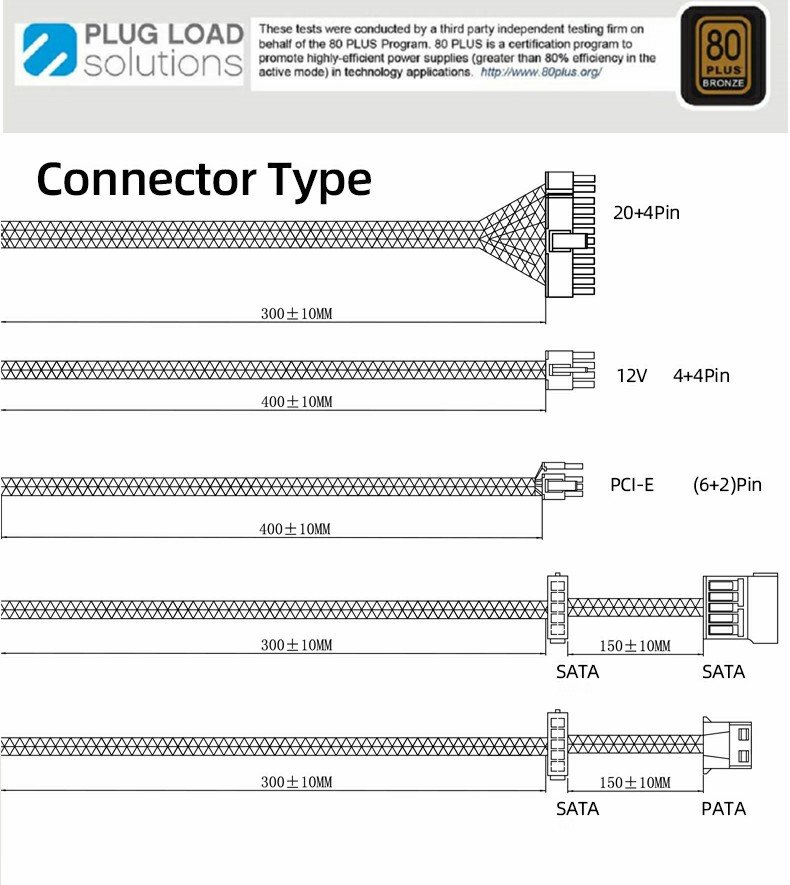

Connectors

GameMax20+4pin (24PIN) Main Connectors

1
GameMax4+4 Pin 12V Connectors:

1
GameMaxSATA Connectors:

3
GameMax4-Pin Molex Connectors:

1

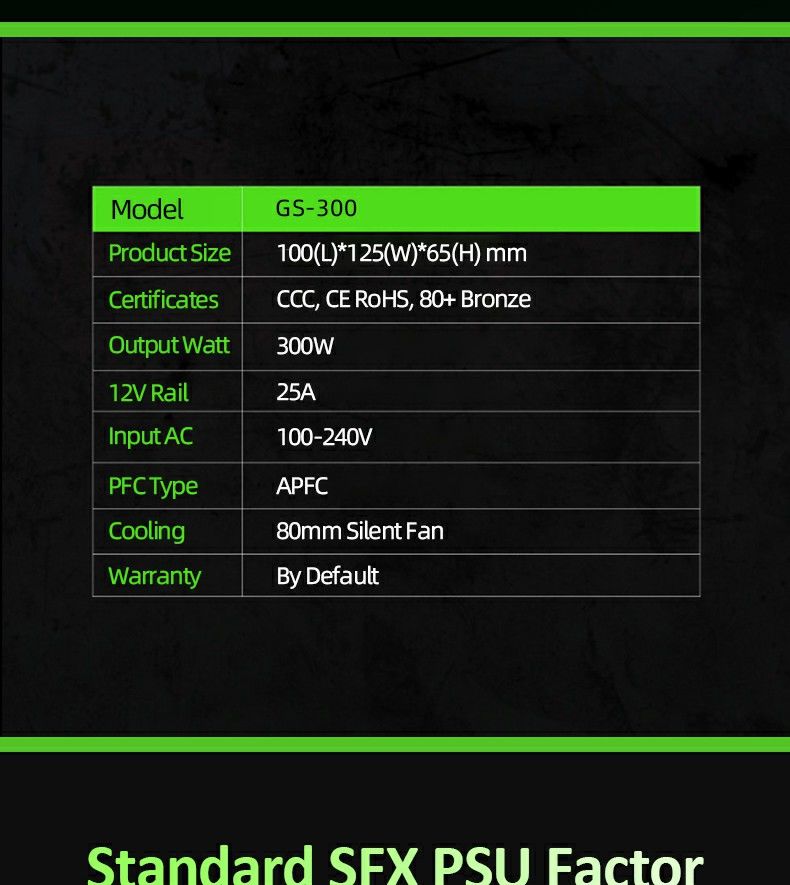

Detailed Specifications

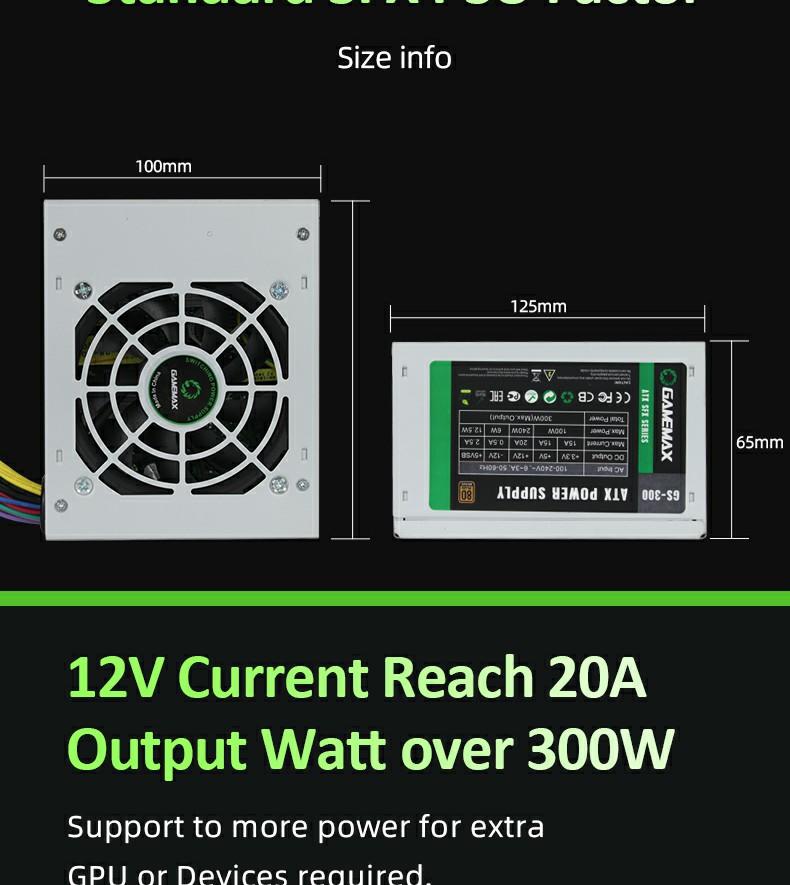

Dimensions:100mm x 63mm x 125mm (W x H x D)
Input Voltage:100-240 VAC
Input Current:3-6A
Input Frequency Range:50-60Hz
PFC:Active PFC (>.99)
Power Good Signal:100-500 ms
Hold Up Time:>17ms
Efficiency:> 81% (85% max)
MTBF:> 100,000 Hours
Protection:OVP / UVP/ OTP / OCP/ OLP/ OPP/ SCP
Power:300W
Operation Temperature:0-40 degree
Safety:CE / FCC / CB
Cooling:80mm Ultra Silent Fan
Noise:<25dBa

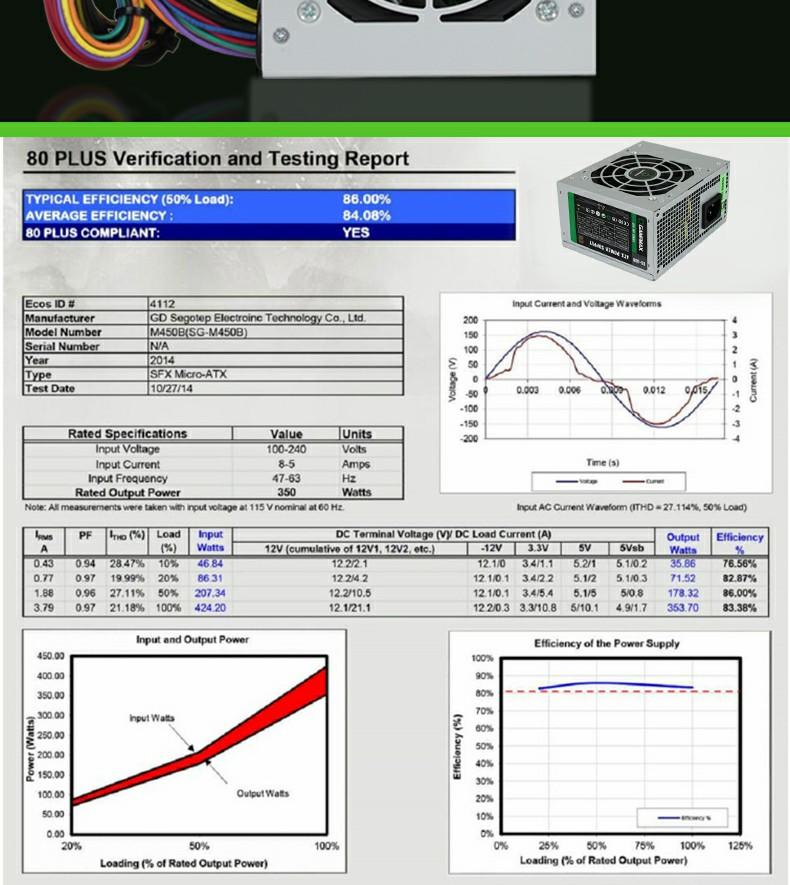

80 Plus Certified:Yes - 80 Plus Bronze

General Specifications

Manufacturer Part Number:GS-300
EAN Number:6931858740036
Has Mains Plug:No
Colour:Silver
What's In The Box:Power Supply
Screws
Manual
2 x Cable Ties
Unit (Product) Dimensions (mm):125mm x 62mm x 100mm (W x H x D)
Packaging Dimensions (mm):179mm x 162mm x 74mm (W x H x D)
Net Weight (KGs):0.8 KGs
Gross Weight (KGs):0.9 KGs



Key Features

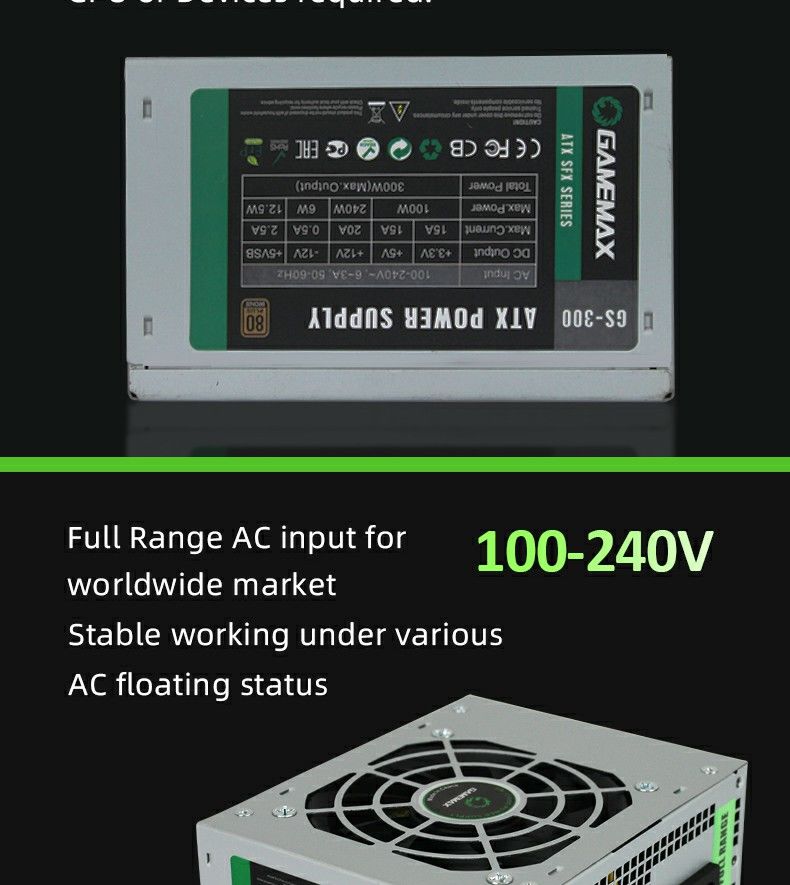

  • Active PFC and Full Range AC Input (100-240V)

  • Designed for custom built PCs, mini-servers and HTPCs

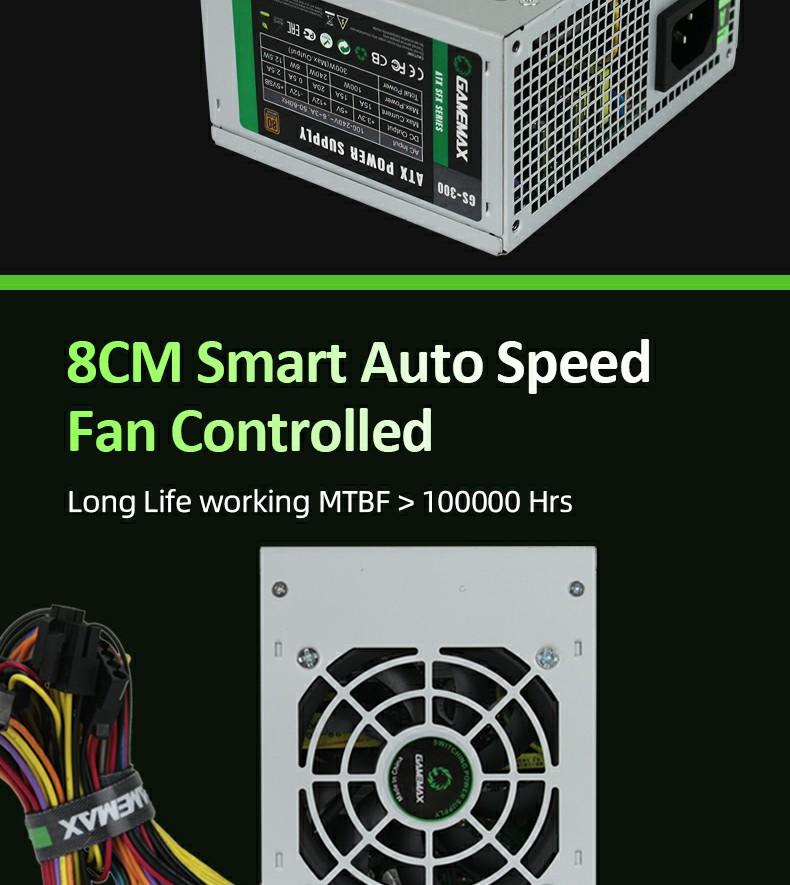

  • Smart auto fan speed controller

  • The micro SFX design

  • Safety and EMC certified by CE

  • High Efficiency up to 85%

  • Fully protection functions with OVP / UVP / OPP / SCP / SIP
