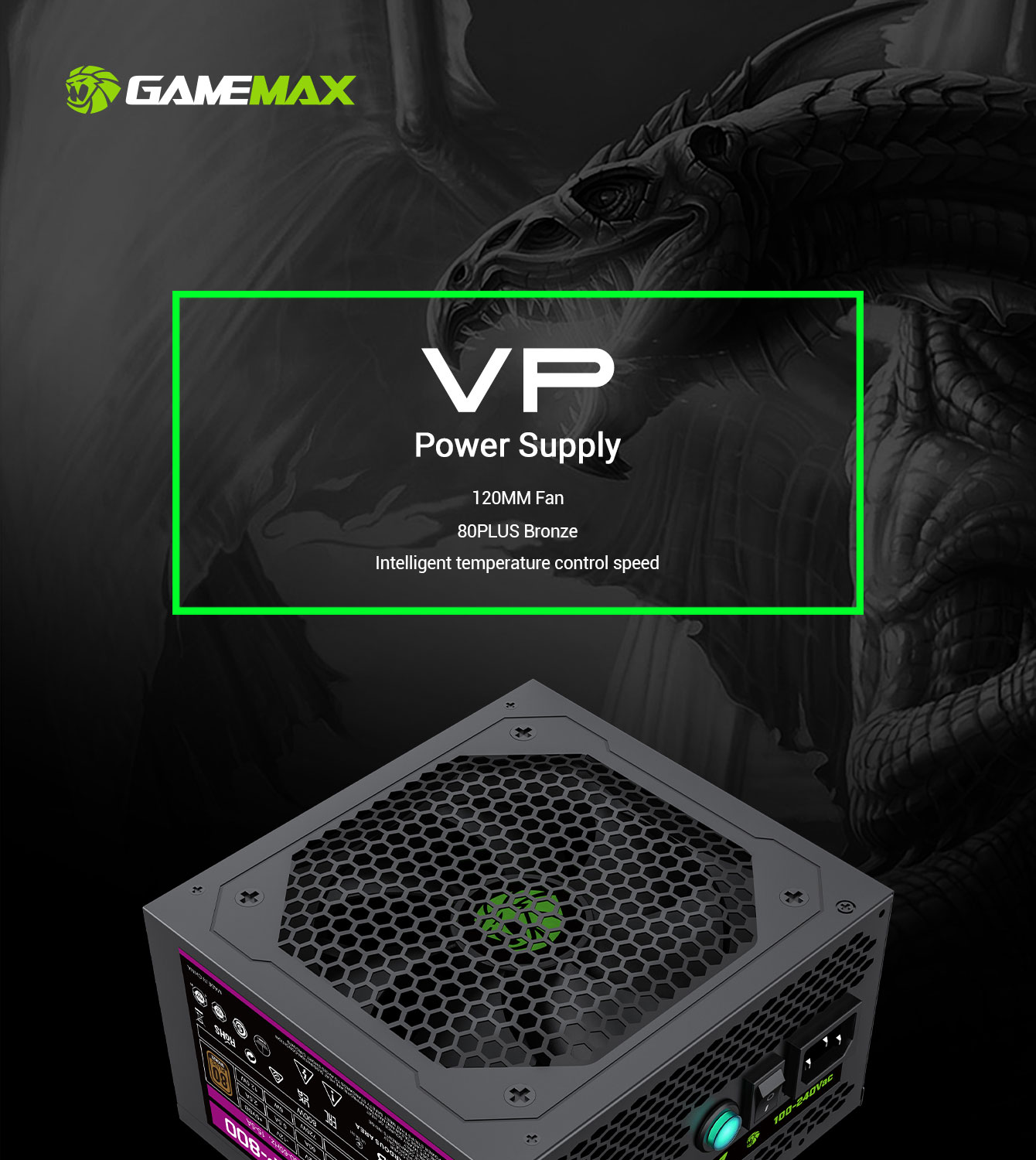

The GameMax VP series power supply offers a “Value and Performance” scheme. 80Plus is ready to support the high efficiency required, also it is continuing to a popular for computer builds.
⚡【Performance】 Honeycomb ventilation design for optimal heat dissipation. 80 plus Bronze certified, with 85% efficiency or higher under typical loads. Non-modular output wire rod, optimize routing requirements.
⚡【Smart and silent fan control】 Low Noise 12cm Fan with intelligent fan speed control. The ECO switch allows users to customize their cooling needs by selecting between the Fanless Mode and the Silent Mode.
⚡【Highest Protection】Powerful single +12V rails offer stable DC output and support high-end graphic cards and PC systems. Grade A+ capacitors offer the highest stability, durability, and reliability, OPP/OVP/UVP/SCP/OCP electrical protection included.
⚡【Our brand】GAMEMAX has been committed to manufacturing PC components and providing OEM service for well-known brands from 2003 till now. GAMEMAX's products are of multiple international security standard certificates including CB, CCC, FCC, CE, etc.
- PSU Type： ATX
- Cabling： Wired

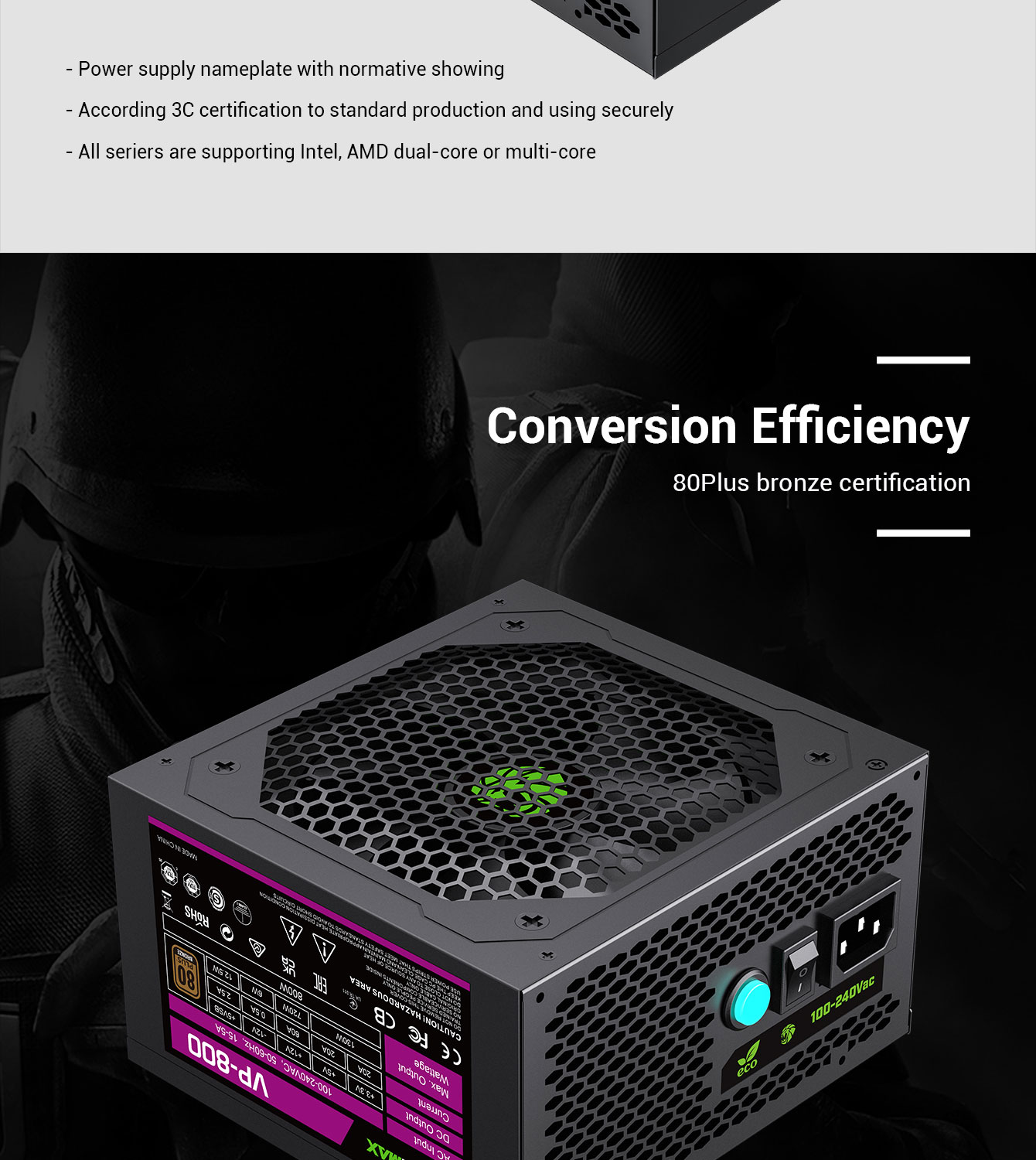

- Efficiency： 85+ Bronze
● 80PLUS Ready!
80+ bronze design basis. Compliant with 80PLUS efficiency requirements.

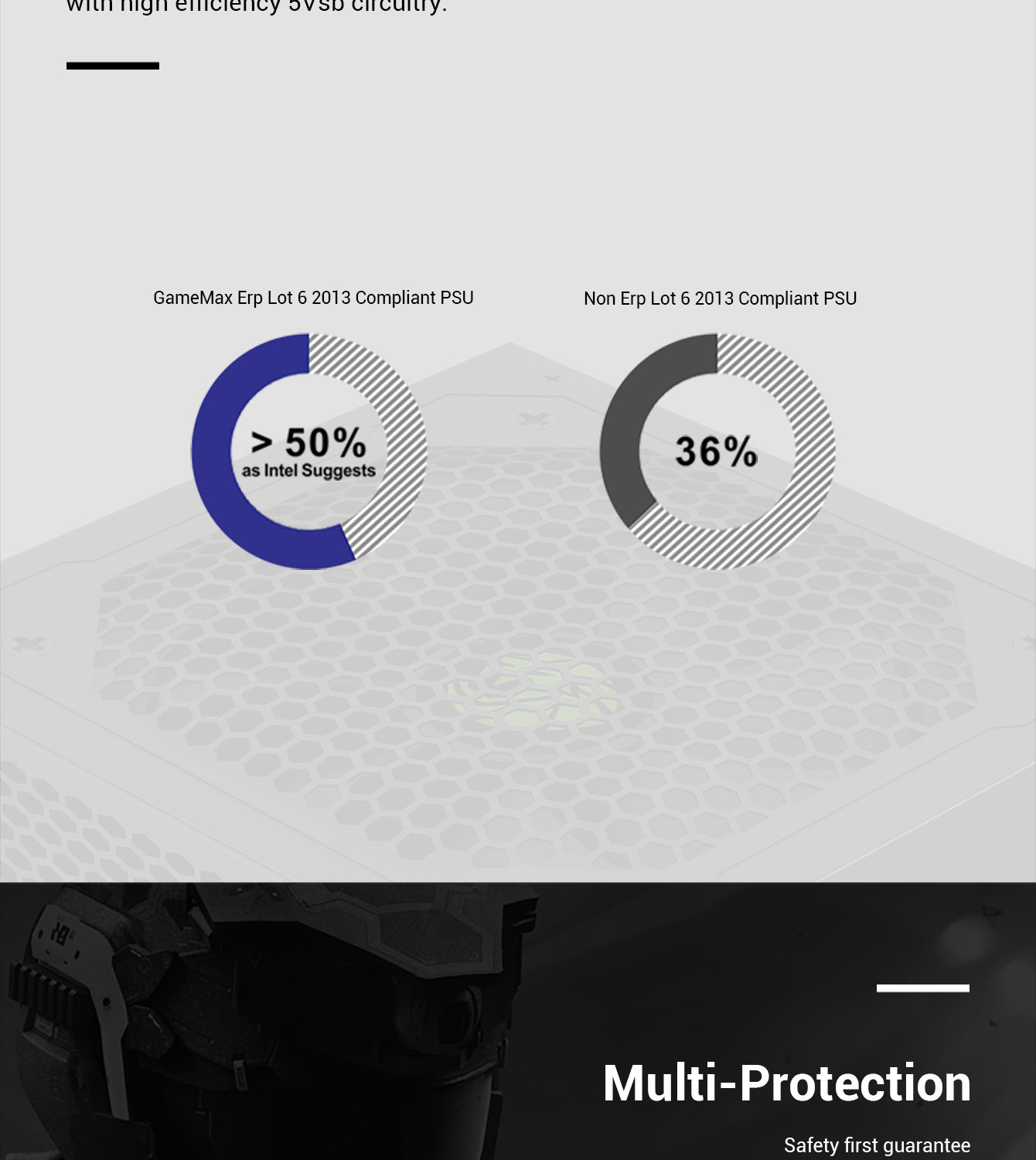

● Lot 6 2013 ready!
Help system meet ErP Lot 6 2013 (<0.5W at standby mode) with high efficiency 5Vsb circuitry.

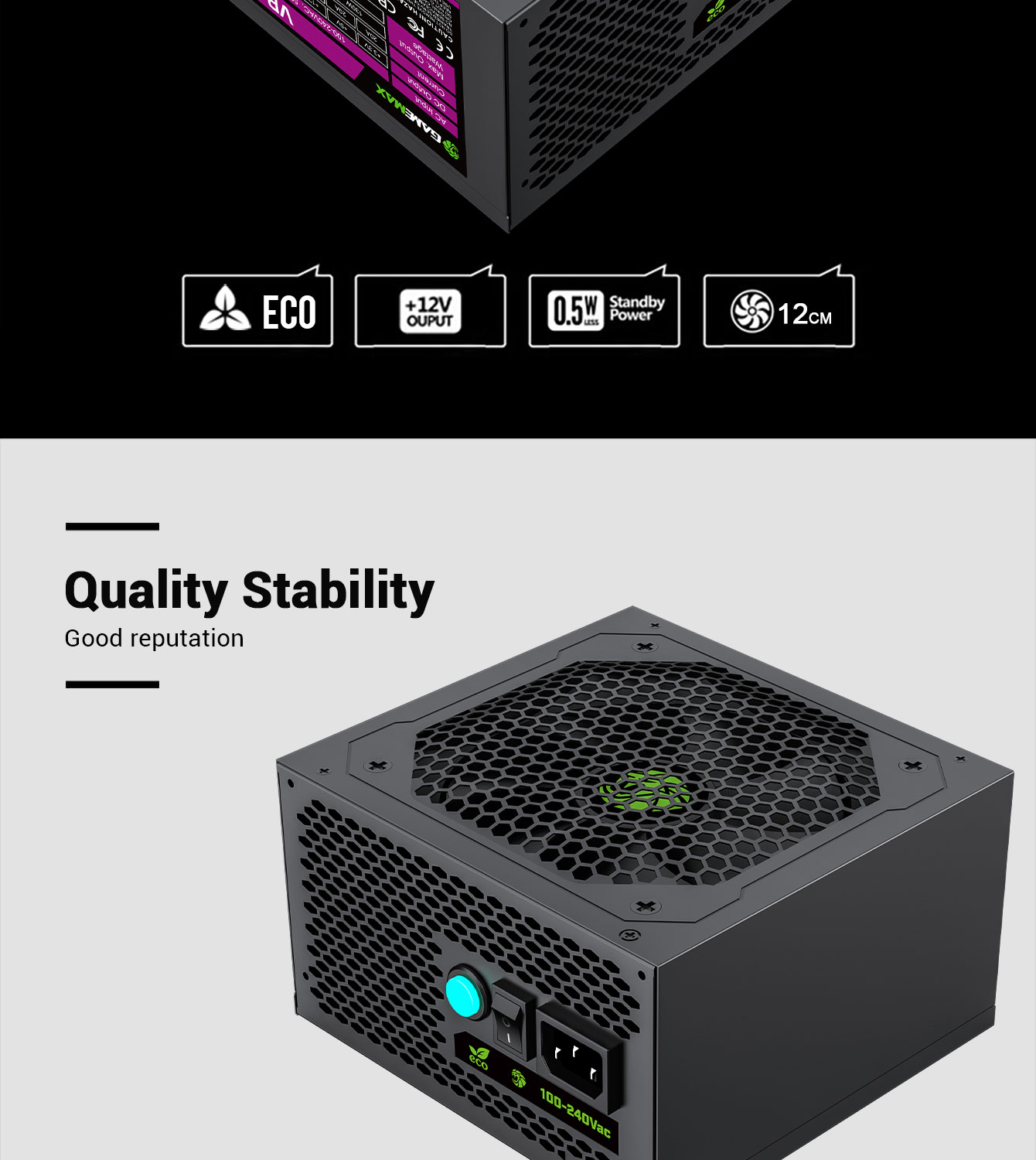

Honeycomb ventilation design for optimal heat dissipation.
● Durable hydraulic pressure bearing fan
Low Noise 12cm Fan with intelligent fan speed control.
The intelligent thermal circuit feature is designed to find the optimal balance between the necessity to cool the components and the need to run the power supply in the most silent manner possible.

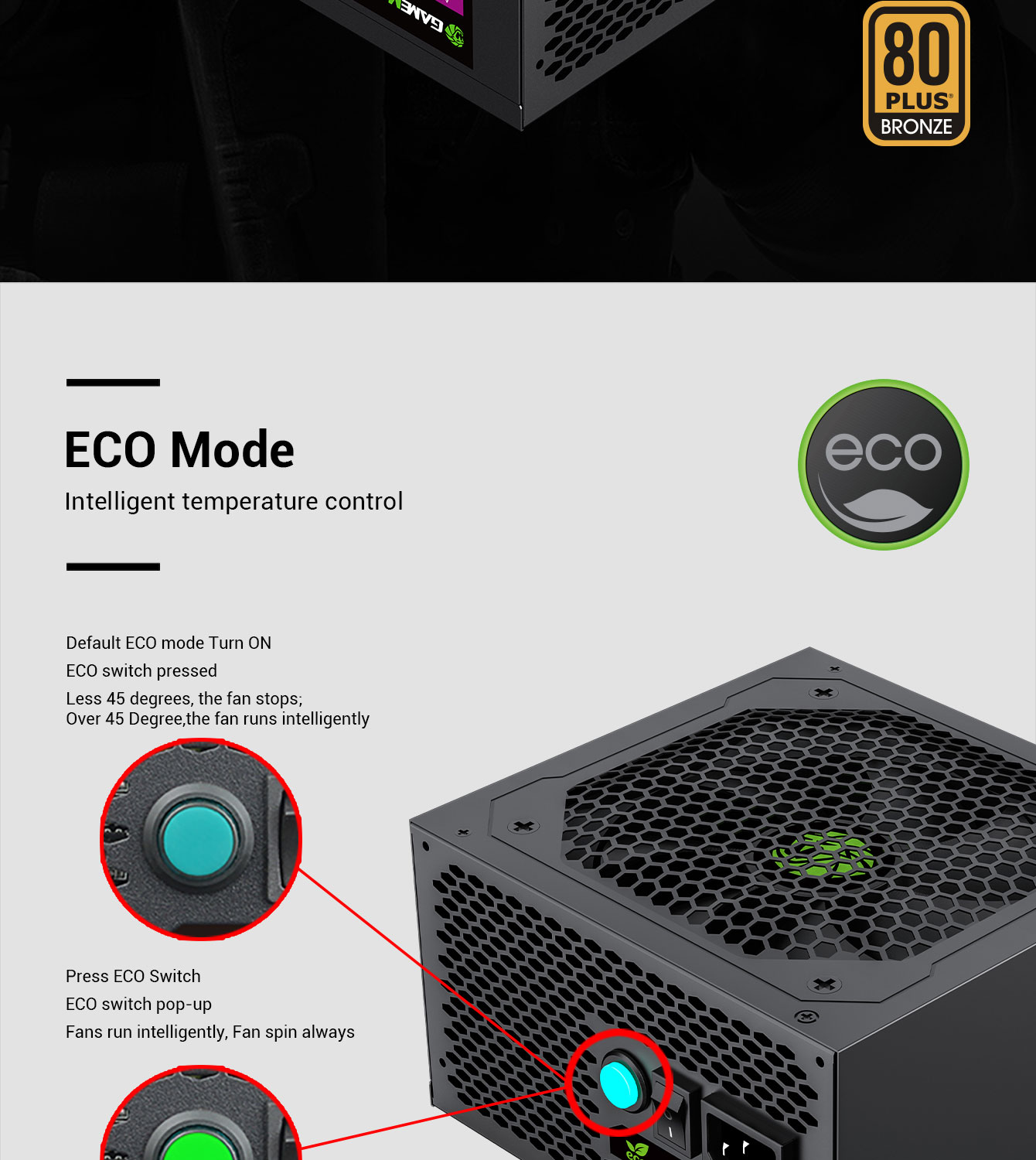

● Smart and Silent Fan control
There is a ECO switch at the back of the power supply which allows users to customize their cooling needs by selecting between the Fanless Mode and the Silent Mode
ECO -ON Status, Fanless Mode
ECO -OFF Status, Silent Mode

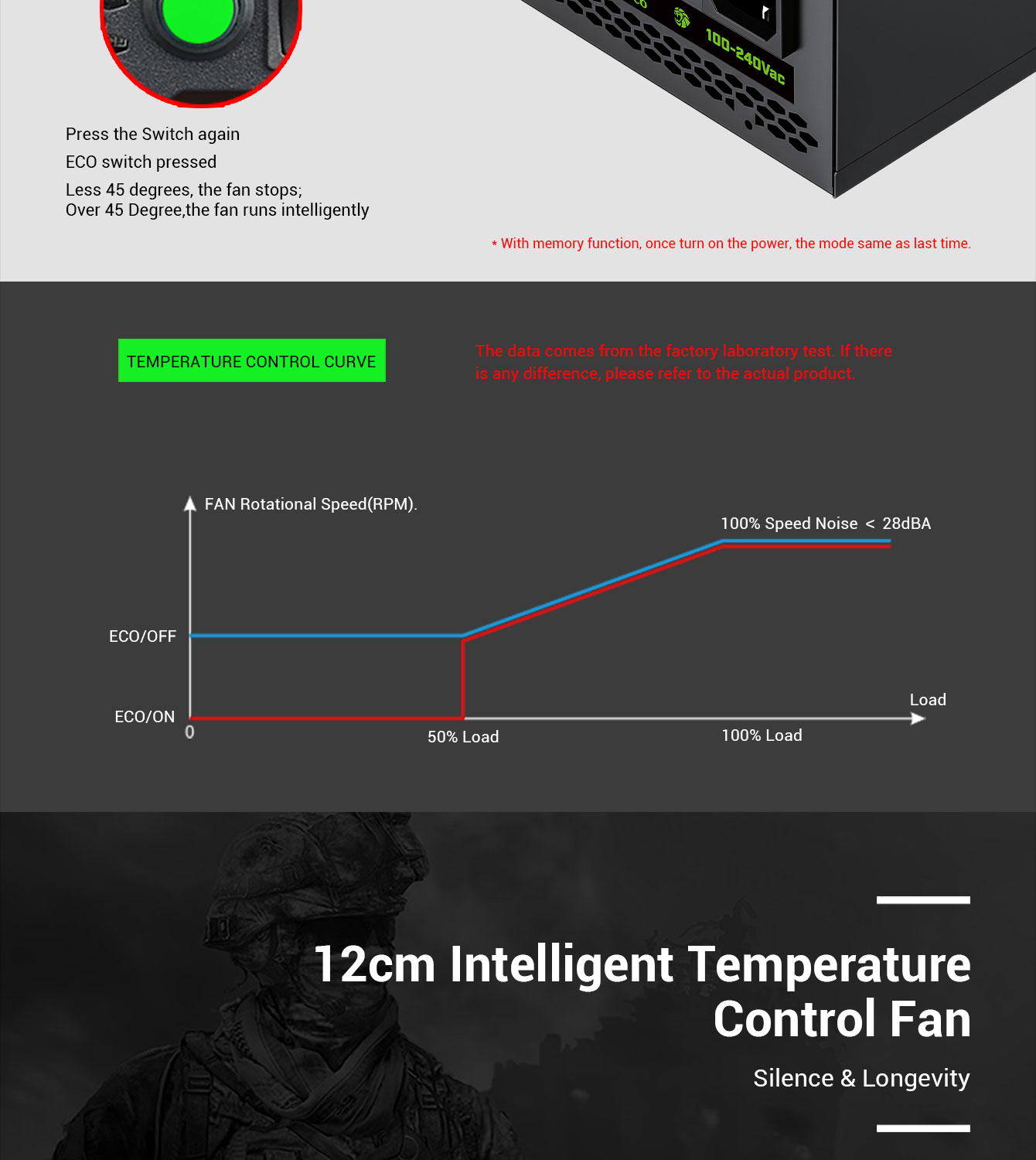

●Tempreature control curve
Reduced noise without increase in temperature;
Extended fan life due to the reduced number of fan rotations;
Optimized heat dissipation at all times;
Unsurpassed silent performance in Fanless Mode.
|80PLUS®||APFC 80+ Plus Compliant|
|Efficiency Level||80+ Bronze|
|Noise Level||Zero (ECO-ON),<32dBA (at 100% load)|
|Form Factor||Intel ATX 12 V 2.31|
|Dimensions||140 mm (W) x 150 mm (L) x 86 mm (H)|
|Fan Information||Fan Size||120 mm|
|Fan Bearing||Fluid Dynamic Bearing|
|Life Expectancy||50,000 hours at 40 °C, 15 % - 65 % RH|
|Cable Information||Modularity||Wired Cabling|
|Cable type||Black tube shield along with colors CPU and PCIe connecor|
|Electrical Features||Operating Temperature||0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)|
|MTBF @ 25 °C, excl. fan||100,000 hours|
|AC Input||Full Range AC input (100-240Vac)|
|Protection||OPP, OVP, UVP, OCP, OTP, SCP|
|Safety and Environmental||Safety and EMC||CB, CCC,CE|
|Environmental Compliance||RoHS, WEEE, ErP Lot 6|

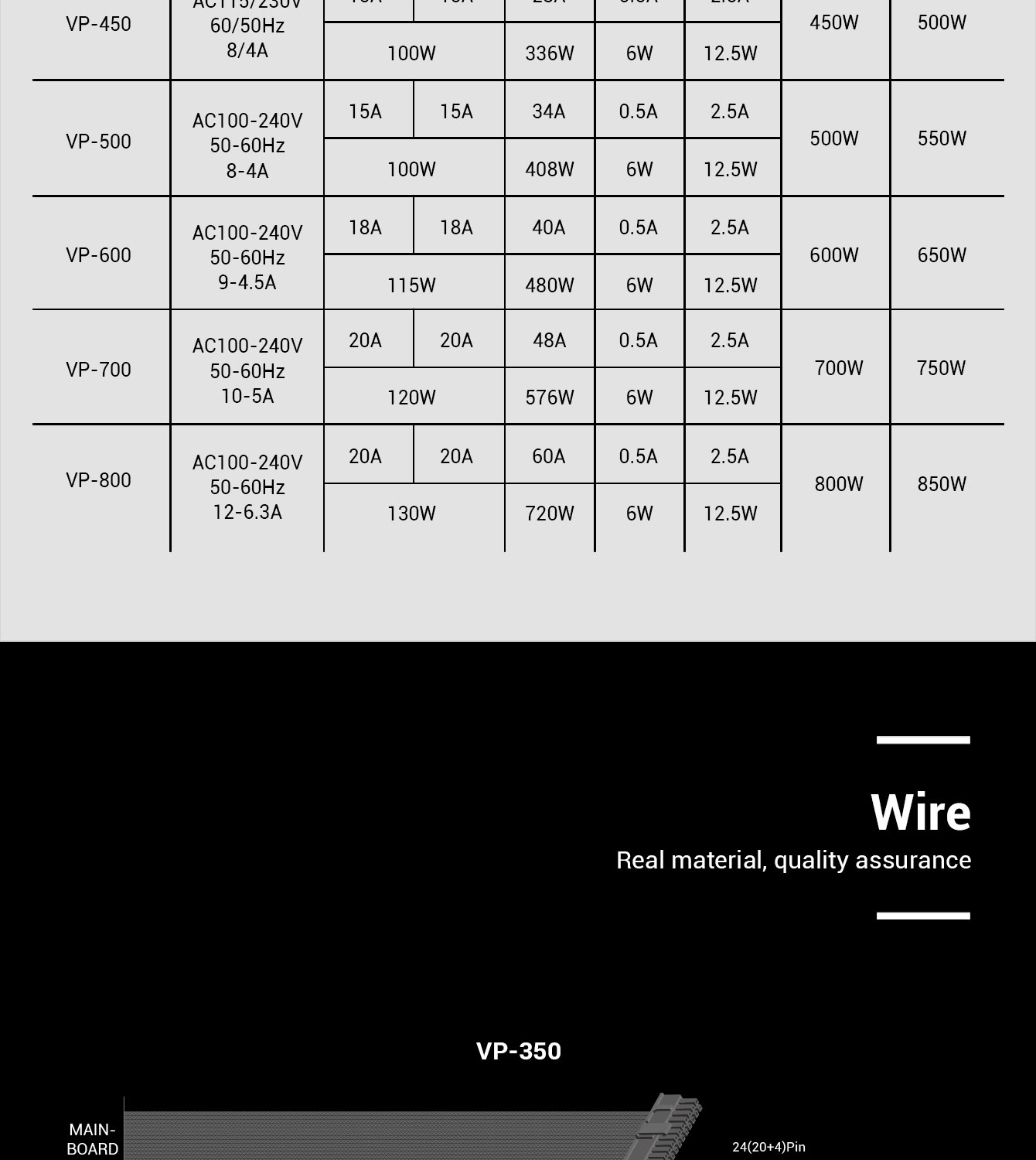

|AC INPUT: AC 100-240V 50-60Hz 9-4.5A|

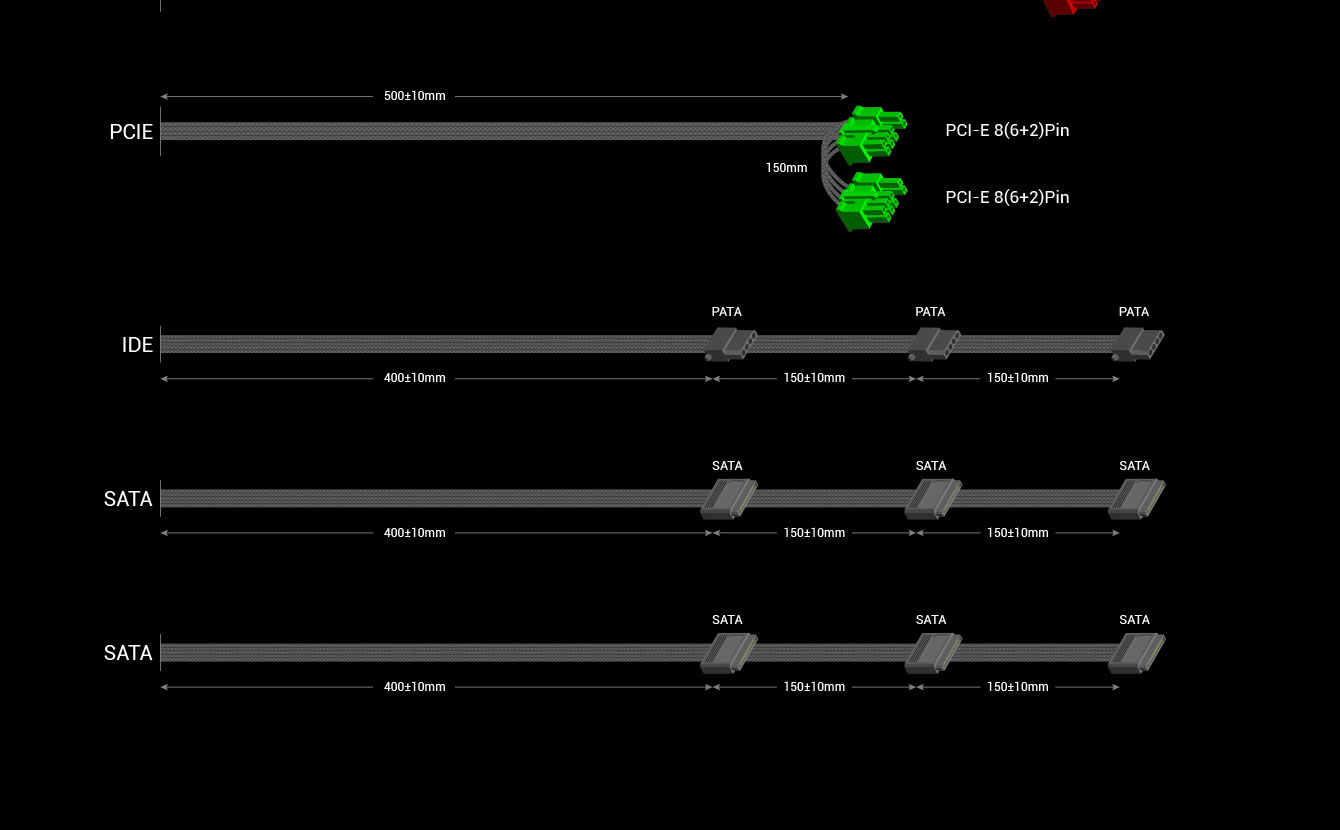

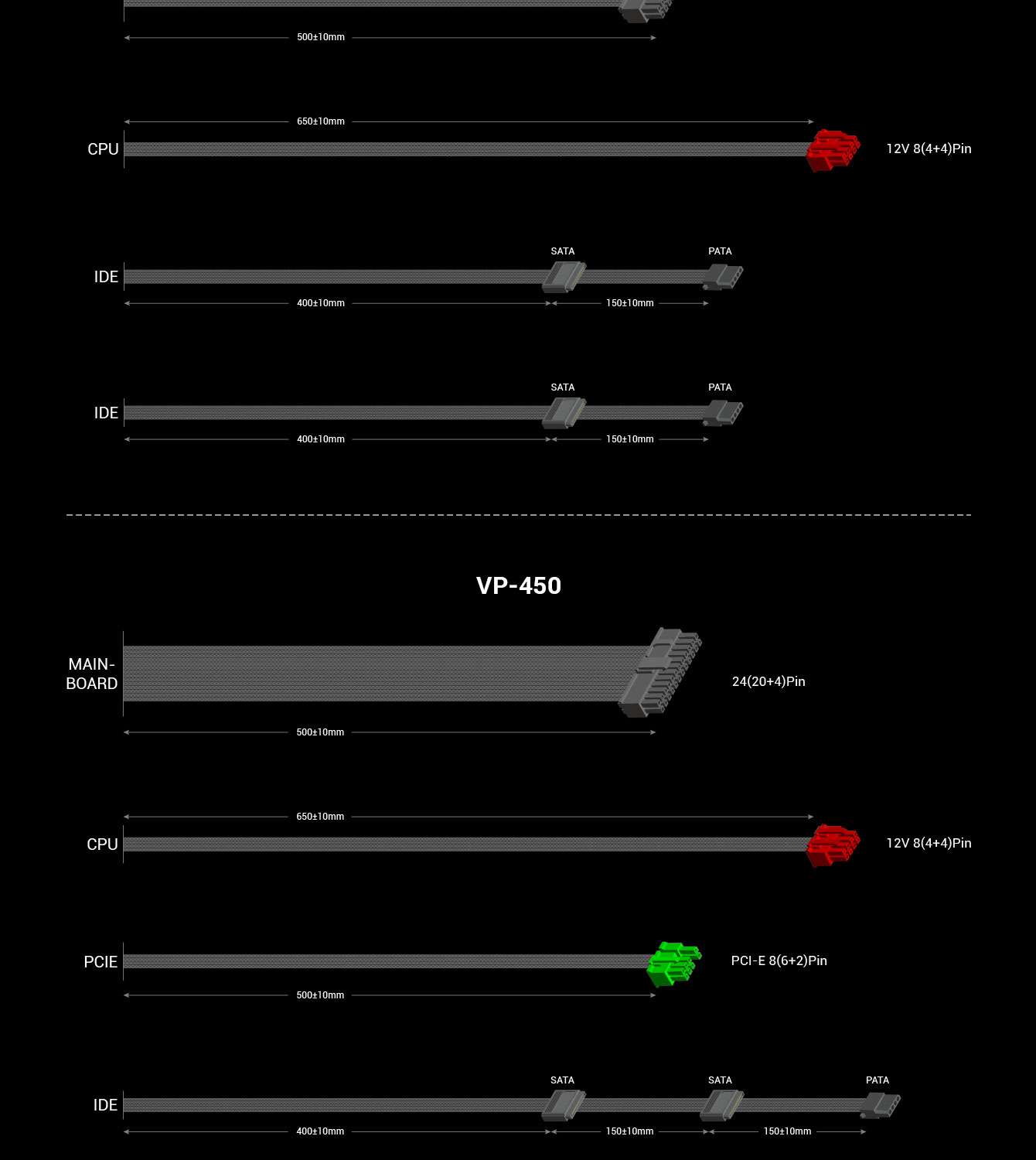

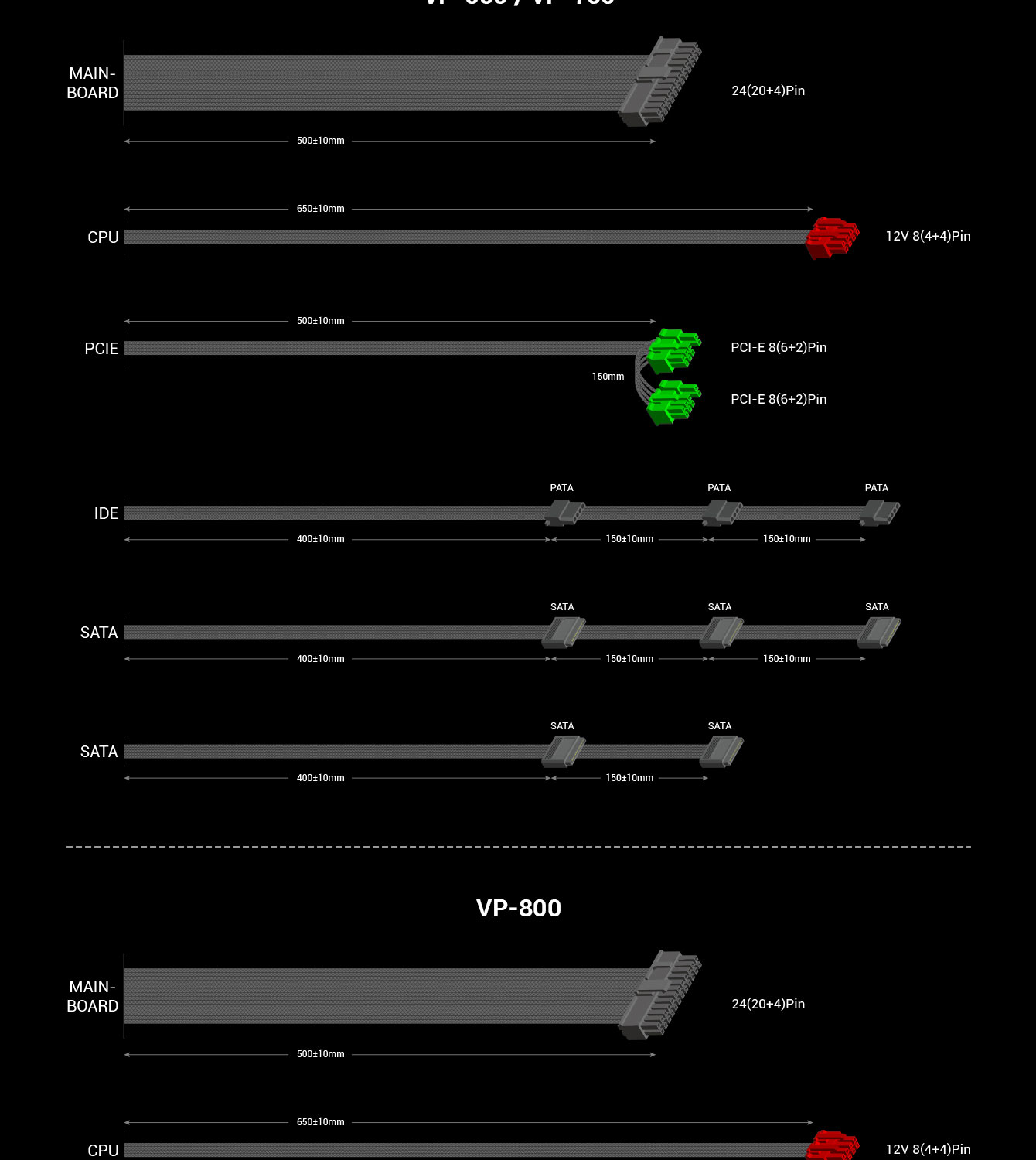

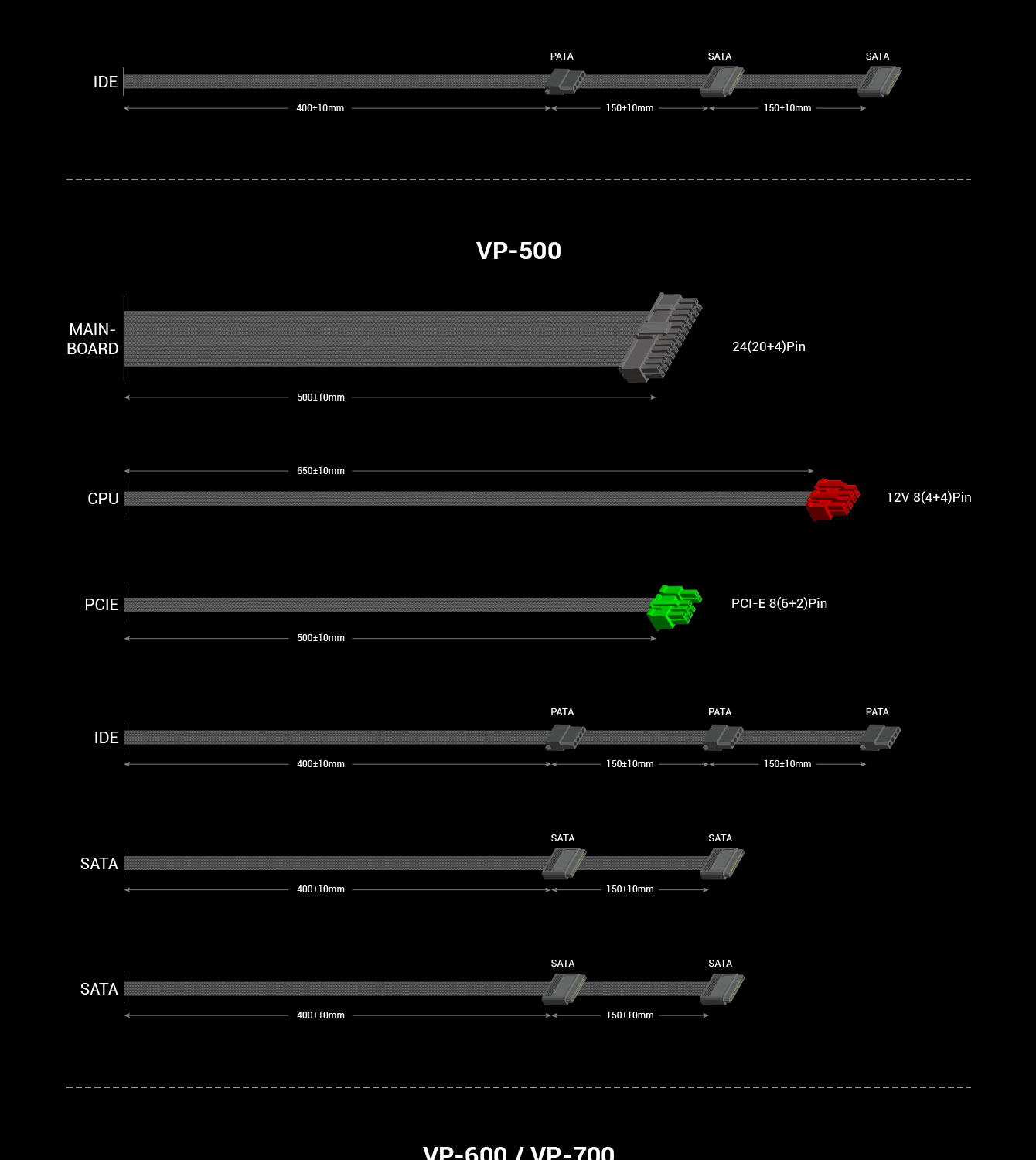

|Motherboard 20+4pin (500mm)||1|
|12V CPU EPS(4+4)(600mm)||1|
