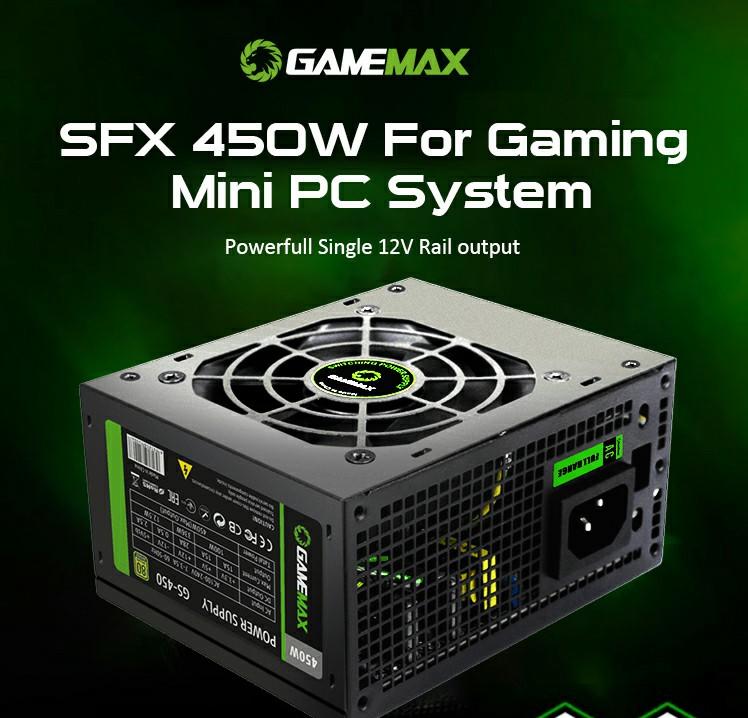

GS-450 80+
The small form factor power supply for your big ideas.
GameMax SFX Series power supplies bring legendary performance and reliability to the SFX small form factor standard. They have the features found in full-size high-performance power supplies, with compliant with 80 PLUS efficiency, superior voltage regulation, along with smart fan controller for better reliability.
Active PFC and Full Range AC Input (100-240V)
Designed for custom-built PCs, mini-servers and HTPCs

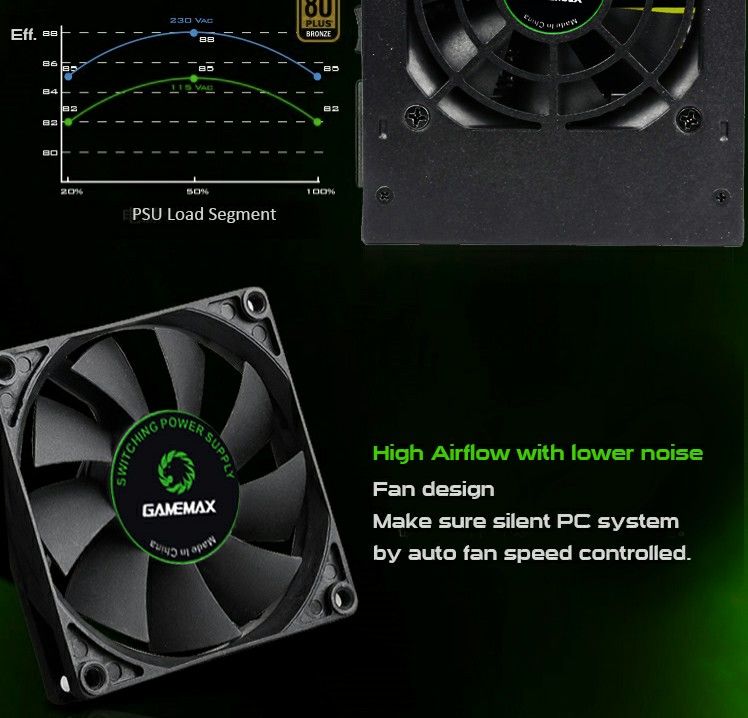

Smart auto fan speed controller
The micro SFX design
Safety and EMC certified by CE
High Efficiency up to 85%
Fully protection functions
- PSU Type： SFX
- Cabling： Wired
- Efficiency： 85+ Bronze
The small form factor power supply for your big ideas.
GameMax SFX Series power supplies bring legendary performance and reliability to the SFX small form factor standard. They have the features found in full-size high performance power supplies, with compliant with 80 PLUS efficiency, superior voltage regulation, along with smart fan controller for better reliability.

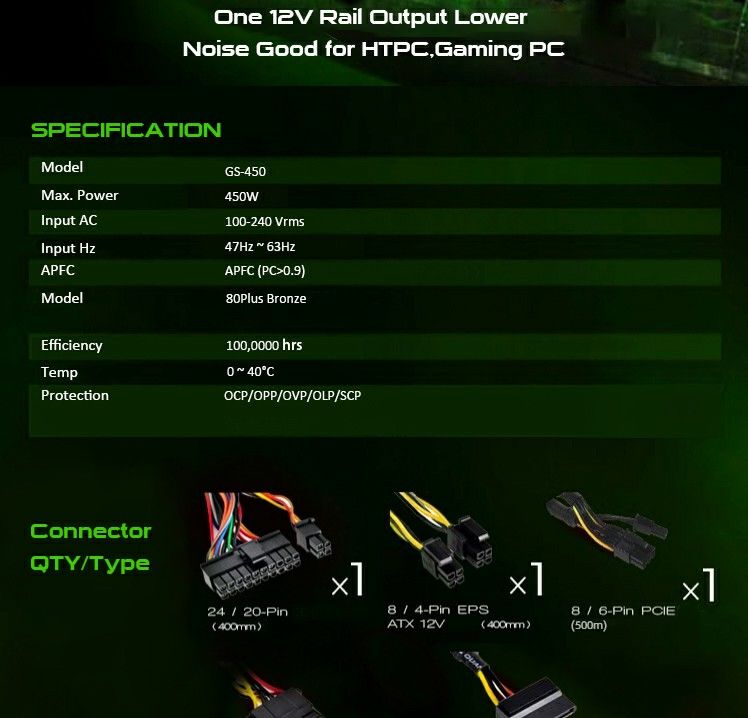

PSU Specifications

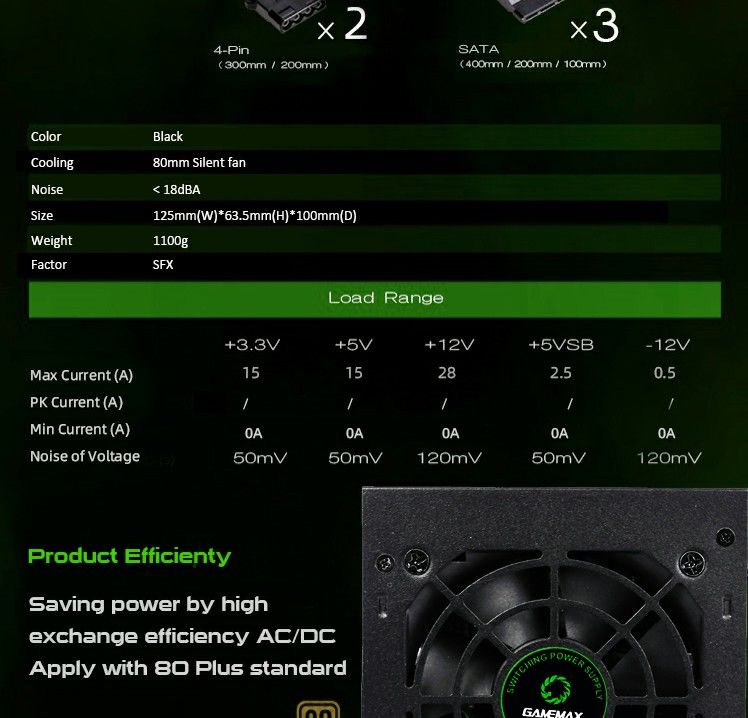

| AC INPUT: 100-240 VAC 3-6A 50-60Hz | |||||
| DC | +3.3V | +5V | +12V1 | -12V | +5VSB |
| Output | 15A | 15A | 28A | 0.5A | 2.5A |
| Max | 450W(Max.) | ||||
Detailed Specifications

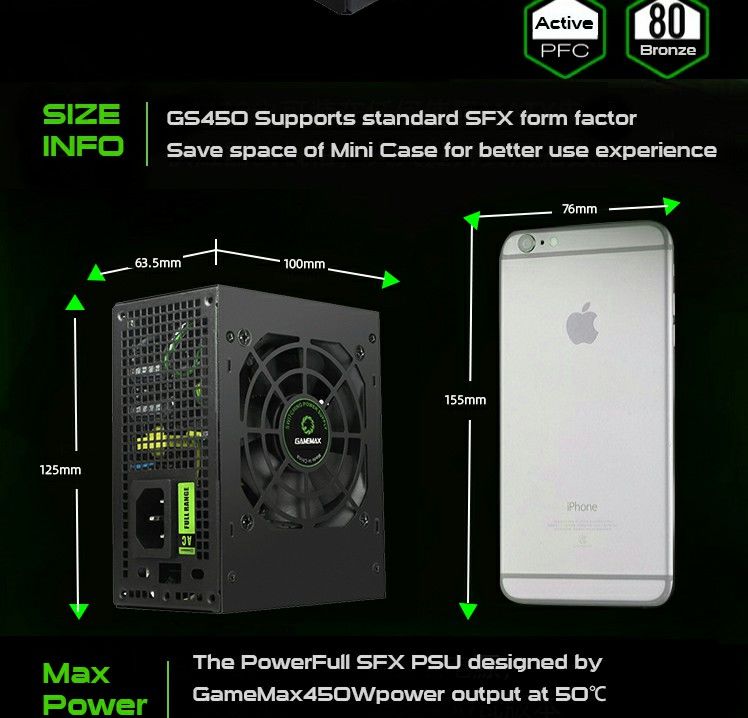

| Dimensions: | 100mm x 63mm x 125mm (W x H x D) |
| Input Voltage: | 100-240 VAC |
| Input Current: | 3-6A |
| Input Frequency Range: | 50-60Hz |
| PFC: | Active PFC (>.99) |
| Power Good Signal: | 100-500 ms |
| Hold Up Time: | >17ms |
| Efficiency: | > 81% (85% max) |
| MTBF: | > 100,000 Hours |
| Protection: | OVP / UVP/ OTP / OCP/ OLP/ OPP/ SCP |
| Power: | 450W(Max.) |
| Operation Temperature: | 0-40 |
| Safety: | CE / FCC / CB |
| Cooling: | 80mm Ultra Silent Fan |
| Noise: | <25dBa |
| 80 Plus: | Yes - 80 Plus Bronze Design |
General Specifications
| Manufacturer Part Number: | GS-450 |
| EAN Number: | 6931858740036 |
| Has Mains Plug: | No |
| Colour: | Silver |
| What's In The Box: | Power Supply Screws Manual 2 x Cable Ties |
| Unit (Product) Dimensions (mm): | 125mm x 62mm x 100mm (W x H x D) |
| Packaging Dimensions (mm): | 179mm x 162mm x 74mm (W x H x D) |
| Net Weight (KGs): | 0.8 KGs |
| Gross Weight (KGs): | 0.9 KGs |

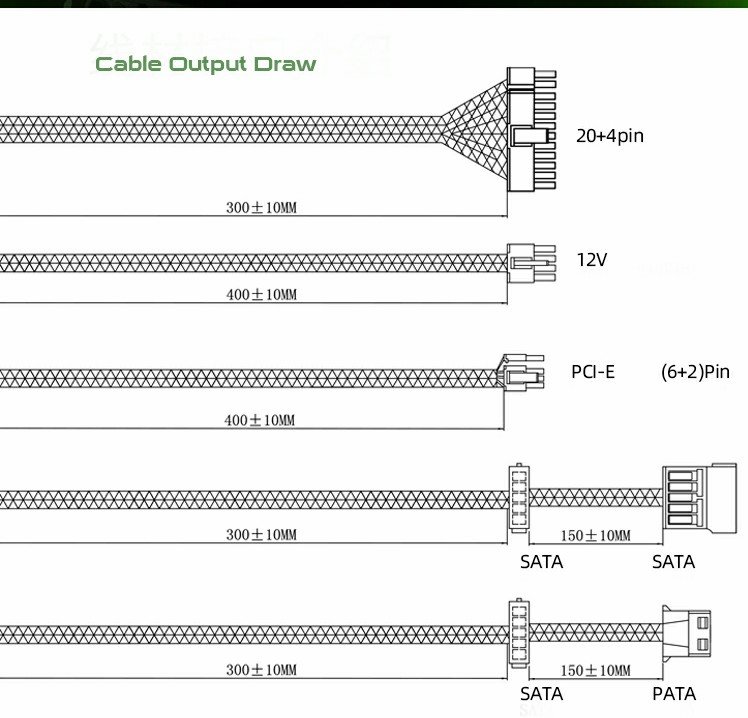

 | Motherboard 20+4pin (500mm) | 1 |
 | 12V CPU EPS(4+4) | 1 |
 | PCIe 6+2PIN(s) | 1 |
 | SATA(s) | 3 |
 | Molex 4pin(s) | 1 |
